Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood

  • Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood
  • Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood
  • Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood
  • Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood
  • Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood
  • Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood
Место происхождения КИТАЙ
Фирменное наименование FAST
Сертификация ISO9001
Model Number FT3-1530D
Количество мин заказа 1Set
Цена USD 9500~14500/set
Упаковывая детали Фанерные чехлы
Время доставки 30 дней
Условия оплаты L/C, T/T, Western Union
Поставка способности 300sets/year

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас возникнут вопросы, мы предоставляем круглосуточную онлайн-поддержку.

x
Подробная информация о продукте
Состояние Новый Travelling size 1570*3100*200mm
Working size 1550*3080*180mm Transmission X/Y rack and pinion drive, Z ball screw drive
Table structure T-slot vacuum Сила веретена 9.6kw
Скорость шпинделя 24000r/min Скорость путешествия 45m/min
Журнал инструментов Карусель Tool slots 16
Система вождения Яскава Controller Sytec/Osai
Voltage AC380/3PH/50HZ Гарантия 12 месяцев
Могил 1 набор Услуга 24 часа онлайн -услуги
производство ODM OEM приемлемый Порт Циндао порт
Оставьте сообщение
Характер продукции

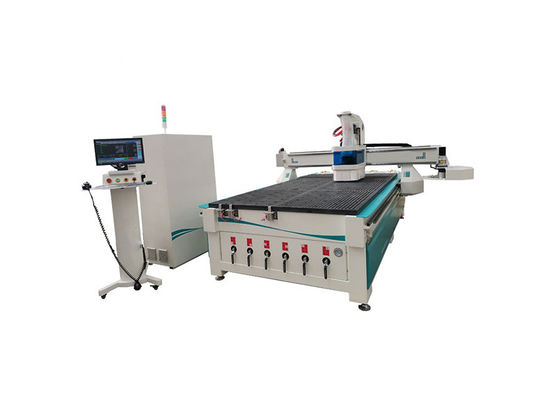

F3-1530D Carousel ATC CNC Router With 16 PCS Carousel Tools



APPLICATIOINS

Well-suited for processing of fronts, pavements, balustrades, doors and windows, engravings, etc.



DECORATIONI

 Solid wood, PAL, MDF, plastic, resins, composite materials, insulating panels, acrylic, PVC, hard materials, stone, glass Organic and non -ferrous metals (aluminium, copper, etc.)  etc.



FEATURES

Processing center for intensive use, with rotating shops with eight positions and rapid change.



FUNCTIONS

Routing, drilling, cutting, vertical and horizontal milling, smoothing, sanding etc. Using top mechanical and electronic components, for reliability and precision, servo motors and Japan Shimpo reducer and fast Italy tool changer , Syntec controlling systems, Frence low voltage electric components, with a Becker pump 250mc /h, or fixing with retractable clamps and pins. Steel frame and transmission Germany Electromagnetic HSD Italy 9.6kw, Linear tool magazine with eight positions Ready for axes four.



Optional: aggregate 5 +4



TECHNICAL DATA



F3 series F3-1530D
Travelling size 1570*3100*200mm
Working size 1550*3080*180mm
Table size 1560*3100 mm
Transmission X/Y rack and pinion drive, Z ball screw drive
Table structure T-slot vacuum
Spindle power 9.6KW
Spindle speed 24000r/min
Travelling speed 45m/min
Working speed 20m/min
Tool magazine Carousel
Tool slots 8
Driving system Yaskawa
Voltage AC380/3PH/50HZ
Controller Sytec/Osai

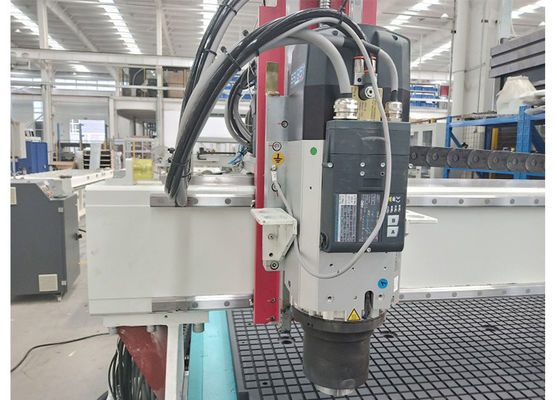

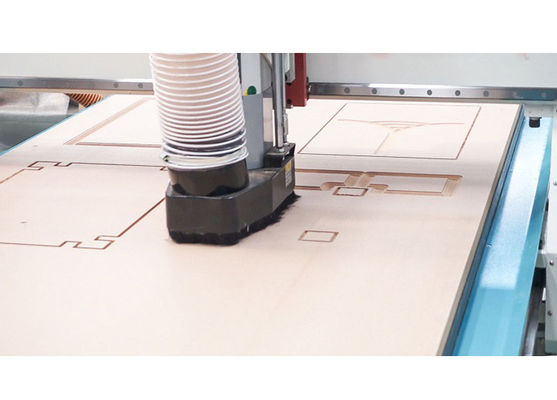

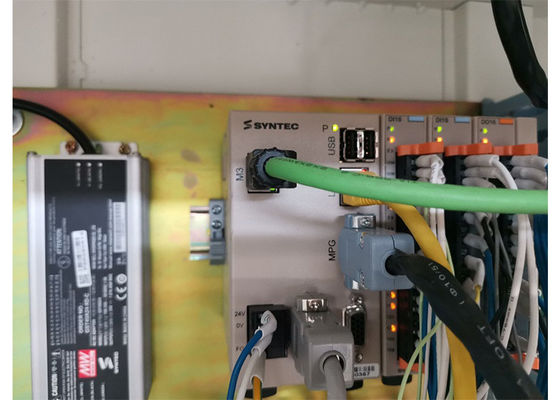

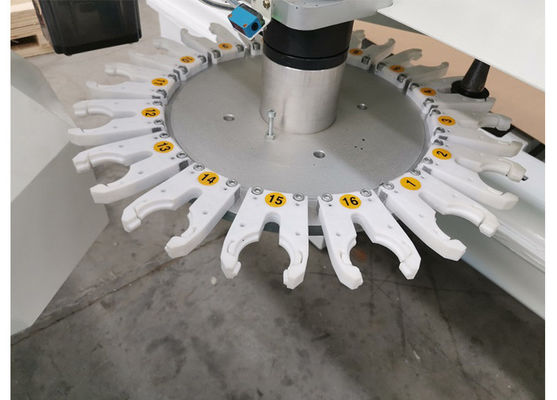

DETAIL IMAGES

Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood 0

Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood 1Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood 2Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood 3

 SAMPLES

Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood 4Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood 5Cnc Milling Woodworking Machine 1325 1530 Atc Cnc Router With Carousel For Carved Wood 6



FAQ

· Are you a Manufacturer or a Trading company?

Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.

Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc

· Do you have stock product ready to delivery?

In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.

· After an order is placed,when to delivery?

General 30 working days. It depends on specific items and item quantities.

Please check with sale manager for exact delivery time.

· What is the Warranty with After-sale Services?

12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.

· What about the product quality?

Each machine must be carried out quality examination and test when shipping and delivery goods
