New Products To Sell Bore Well Drilling Machine CNC For Pipe Pipe/Bar Length 2000mm Cnc Drilling Machine Metal
Свяжитесь со мной для бесплатных образцов и купонов.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Скайп: sales10@aixton.com
Если у вас возникнут вопросы, мы предоставляем круглосуточную онлайн-поддержку.
xПодробная информация о продукте
| Round pipe /bar diameter | 30-3000MM | Количество | 1 |
|---|---|---|---|
| Веретеное конус | BT40 | U Drill diameter(mm) | Φ2-Φ36MM |
| Distance from spindle bottom to worktable | 200-400mm | Скорость шпинделя (R/Min) | 30 ~ 3000 мм |
| Servo spindle motor power(KW) | 7.5Kw | Round bar diameter(mm) | 4000MM |
| Drive mode | Guided by linear rolling guide; driven by AC servo motor and Chuck | Масса | 4 тонны |
Вы можете отметить нужные вам продукты и связаться с нами на доске объявлений.
| Name | Specification | |
|---|---|---|
| Color | Black & White | |
| Controlling System Language | English (Option: Russia） | |
| Tube Length Option | 3000mm/4000mm |
Характер продукции

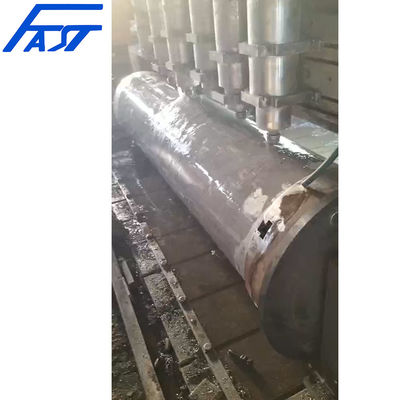

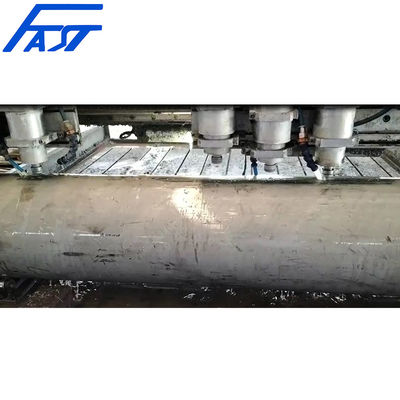

FAST New Products To Sell Bore Well Drilling Machine CNC For Pipe Pipe/Bar Length 2000mm Cnc Drilling Machine Metal
APPLICATION
This machine is mainly used for drilling and processing filter plates and sieve plates in papermaking, medicine, food, chemical and other industries. Straight holes, step holes, tapered holes and other holes can be processed on single materials and composite materials. It can realize automation, high precision, multiple varieties and mass production.

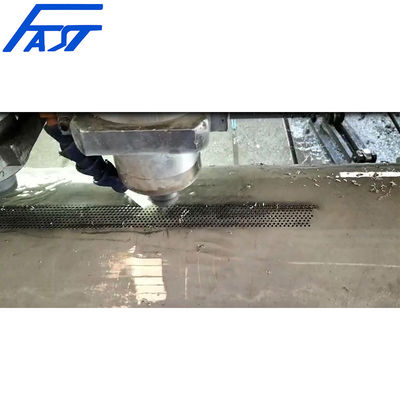

This machine is specially used for drilling machine for sieve plates. This machine is mainly used for high efficiency drilling of small holes on paper pulp sieve plates (stainless steel). The machine can equip with one or several high-speed drilling spindle.
FEATURES
1. This machine is fully digitally controlled. CNC system controls servo automatically position and feed to ensure the accuracy of the drilling position;
2. High drilling accuracy CNC drilling power head. It is easy to quantify the depth;
3. Linear guide line and ball screw fully protected and not exposed;
4. Circulating cooling device;
5. Automatic lubrication device & Protection device. All moving (rotating) parts are automatically lubricated regularly;
6. Anti rusty stainless steel guardrail around the workbench;
7. Full digital numerical control system control:
-Chip breaking function; Tool lifting chip removal function;
-Automatically converting CAD graphics into processing programs function;
- Adjusting the feed and speed according to different apertures,
-The standard numerical control system adopts the German Siemens numerical control system. It is equipped with a USB interface and an LCD liquid crystal display. The operation interface has functions such as human-machine dialogue, error compensation, and automatic alarm.
-Hole position preview and re-inspection function.
COMPOSITION
| Fixed bed worktable | Movable gantry |
| Vertical sliding plate | Drilling heads |
| Cooling system | Automatic lubrication system |
| Controlling system |
TECHNICAL DATA
| Model | 300-2000 | |
| Round pipe /bar diameter | 30-300 | mm |
| Pipe/bar Length | 2000 | mm |
|
Vertical Drilling Head |
Quantity | 1 |
| Spindle taper | BT40 | |
| U Drill diameter(mm) | Φ2-Φ36 | |
| Distance from spindle bottom to worktable | 200-400mm | |
| Spindle Speed (r/min) | 30~3000 | |
| Servo spindle motor power(KW) | 7.5 | |
|
Rotation axis (X Axis) |
Round bar diameter(mm) | 4000 |
| X Axis speed(m/min) | 0~9 | |
| X Axis servo motor power(KW) | 7.5 | |
| Drive mode | Guided by linear rolling guide; driven by AC servo motor and Chuck | |
|
Power Head Lateral Movement(Y Axis) |
Max. Stroke(mm) | 30-300 |
| Y Axis speed(m/min) | 0~9 | |
| Y Axis servo motor power(kw) | 2.3 | |
|
Drive mode |
Guided by linear rolling guide; driven by AC servo motor and ball screw | |
|
Vertical Ram Feed Movement (Z-axis) |
Max. Stroke(mm) | 250 |
| Z axis speed(m/min) | 0~8 | |
| Z Axis servo motor power(KW) | 1×2.3 brake | |
|
Vertical Ram Feed Movement (Z axis) |
Max. Stroke(mm) | 250 |
| Z axis speed(m/min) | 0~8 | |
| Z Axis servo motor power(KW) | 1×2.3 brake | |
| Positioning Accuracy(X/Y/Z) | X/Y/Z | ±0.05/300mm |
| Repeat Positioning Accuracy(X/Y/Z) | X/Y/Z | ±0.025/300mm |
| Weight | About 4T | |
★ All of these models can be customized according to customer requirements.
