FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel

  • FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel
  • FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel
  • FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel
  • FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel
  • FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel
  • FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel
Место происхождения Джинан Китай
Фирменное наименование FASTCNC
Сертификация ISO9001 CE
Model Number E2-1325A/1530A/2040A
Количество мин заказа 1 набор
Цена USD 8000~15000/set
Упаковывая детали Паллет переклейки
Время доставки 30 дней
Условия оплаты L/C, T/T, Western Union
Поставка способности 300sets/year

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас возникнут вопросы, мы предоставляем круглосуточную онлайн-поддержку.

x
Подробная информация о продукте
Состояние Новый Гарантия 12 месяцев
Порт Циндао порт Могил 1 набор
Услуга 24 часа онлайн -услуги Напряжение 380 В.
Сертификат ISO9001 ЧПУ или нет Сжигание
производство ODM OEM приемлемый Application cabinet door, woodern dorr, solide wood furniture ,panel furniture
Transmission X Y axis rack and pinion transmission Скорость шпинделя 18000r/min
Controller Hand-Held Controller Table structure T-slot /Vacuum table
Вы можете отметить нужные вам продукты и связаться с нами на доске объявлений.
Name Specification
Color Black& White

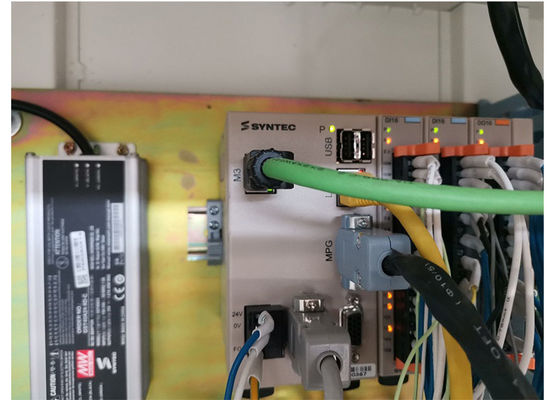

Controlling System Controlling System/Taiwan Syntec
Оставьте сообщение
Name Specification
Характер продукции

FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel

FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel 0



APPLICATION

Furniture: idealy suitable for processing cabinet door, woodern dorr, solide wood furniture ,panel furniture, windows, tabls and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy restin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals.



FEATURES

High-performance all-round machinery with extraordinary value, but at a very economical price.

Constructed with world-class components, consistent high performance.

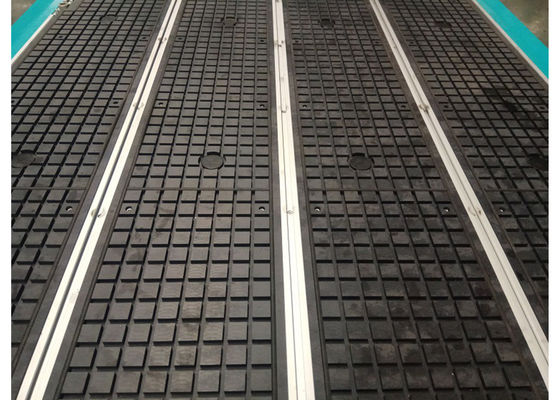

Vacuum table using high-density (1.3-1.45g/cm) material with great suction strength, comfortably accommodating all sizes of work piece.

Highly efficient machine permitting faster production, cutting speed over 18m/min. Low vibration and smooth motion ensure higher work piece quality.



TECHNICAL DATA

SERIES F2-1325        F2-1530 F2-2040/2050/2060
Travelling area 1260*2500*200/300mm 1570*3100*200/300mm 2100*4020*200/300mm
Working area 1240*2480*180/280mm 1550*3080*180/280mm 2050*4000*180/280mm
Table size 1230*2500mm 1560*3100mm 2050*4020mm
Optional workinglength   3080/5000/6000mm
Transmission X/Y rack and pinion drive, Z ball screw drive
Table structure T-slot vacuum/T-slot
Spindle power 3.0 / 4.5 / 6.0KW
Spindle speed 18000r/min
Travelling speed 25m/min
Working speed 15m/min

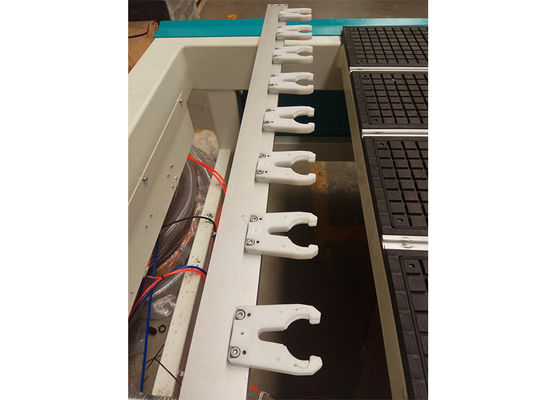

Tool slots 6 / 8
Driving system Stepper / Delta / Panasonic
Voltage AC380/3PH/50HZ
Controller NC ARM hand-held controller / NC-Studio / DSP A11



DETAIL PICTURES

FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel 1

FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel 2

FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel 3

FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel 4

FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel 5



FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel 6

FASTCNC Wood Working Machine Door Making Machine Chinese Furniture Import CNC Router Cnc Nesting Machine For Door Panel 7

FAQ

· Are you a Manufacturer or a Trading company?

Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.

Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc

· Do you have stock product ready to delivery?

In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.

· After an order is placed,when to delivery?

General 30 working days. It depends on specific items and item quantities.

Please check with sale manager for exact delivery time.

· What is the Warranty with After-sale Services?

12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.

· What about the product quality?

Each machine must be carried out quality examination and test when shipping and delivery goods.
