Место происхождения КИТАЙ
Фирменное наименование FAST
Сертификация ISO9001
Model Number E4-1325
Количество мин заказа 1Set
Цена USD 20000~30000/set
Упаковывая детали Фанерные чехлы
Время доставки 30 дней
Условия оплаты L/C, T/T, Western Union
Поставка способности 300sets/year

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас возникнут вопросы, мы предоставляем круглосуточную онлайн-поддержку.

x
Подробная информация о продукте
Состояние Новый ВИДЕО ОТКРЫТИЕ-НЕПРАВИЧЕНИЕ Предоставил
Послепродажная служба Полевая установка, ввода в эксплуатацию и обучение Ключевые точки продажи Автоматический
Working size 2480*1230*180mm Сила веретена 9.6kw
Контроллер Система управления SYNTEC Table structure T-slot and Vacuum table
Рабочая скорость 20 м/мин Тип машины Быстрый маршрутизатор
Вы можете отметить нужные вам продукты и связаться с нами на доске объявлений.
Name Specification
Color Black& White
Controlling System Italy OSAI
Оставьте сообщение
Name Specification
Характер продукции

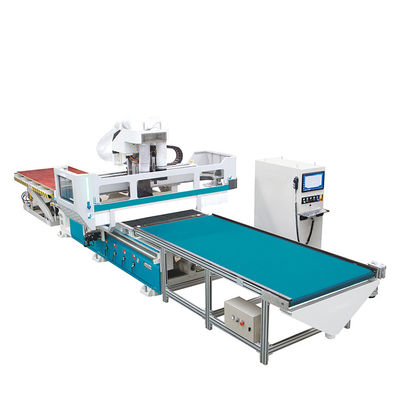

CNC Nesting 3D CNC Router Machine Beam Table with Loading and Unloading 3 Axis CNC Router 1224

CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 0

APPLICATIOINS

Well-suited for processing of fronts, pavements, balustrades, doors and windows, engravings, etc.



DECORATIONI

 Solid wood, PAL, MDF, plastic, resins, composite materials, insulating panels, acrylic, PVC, hard materials, stone, glass Organic and non -ferrous metals (aluminium, copper, etc.)  etc.



FEATURES

Processing center for intensive use, with rotating shops with eight positions and rapid change.



FUNCTIONS

Routing, drilling, cutting, vertical and horizontal milling, smoothing, sanding etc. Using top mechanical and electronic components, for reliability and precision, servo motors and Japan Shimpo reducer and fast Italy tool changer , Syntec controlling systems, Frence low voltage electric components, with a Becker pump 250mc /h, or fixing with retractable clamps and pins. Steel frame and transmission Germany Electromagnetic HSD Italy 9.6kw, Linear tool magazine with eight positions Ready for axes four.



Optional: aggregate 5 +4



TECHNICAL DATA



F3 series E3-1325D
Travelling size 1228*2440*200mm
Working size 1228*2440*180mm
Table size 1228*2440 mm
Transmission X/Y rack and pinion drive, Z ball screw drive
Table structure T-slot vacuum
Spindle power 9.6KW
Spindle speed 24000r/min
Travelling speed 45m/min
Working speed 20m/min
Tool magazine Carousel
Tool slots 8
Driving system Yaskawa
Voltage AC380/3PH/50HZ
Controller Sytec/Osai

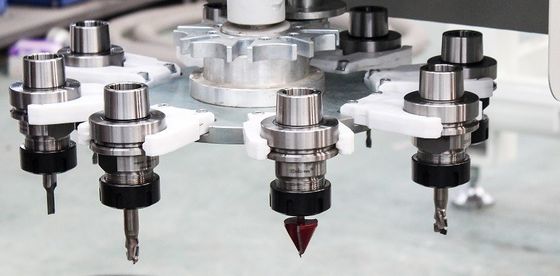

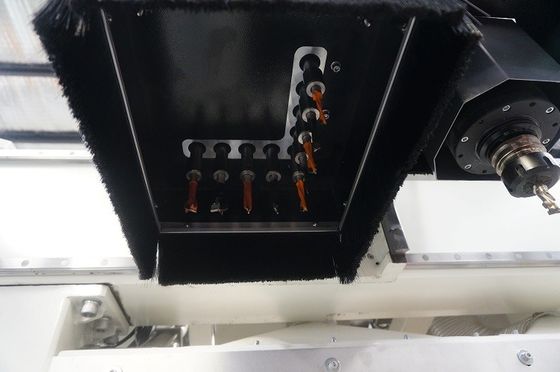

DETAIL IMAGES

CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 1CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 2CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 3CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 4CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 5

SAMPLES

CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 6

CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 7

CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 8

CNC Nesting 3D CNC Router Machine Beam Table With Loading And Unloading 3 Axis CNC Router 1224 9

FAQ

· Are you a Manufacturer or a Trading company?

Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.

Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc

· Do you have stock product ready to delivery?

In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.

· After an order is placed,when to delivery?

General 30 working days. It depends on specific items and item quantities.

Please check with sale manager for exact delivery time.

· What is the Warranty with After-sale Services?

12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.

· What about the product quality?

Each machine must be carried out quality examination and test when shipping and delivery goods
