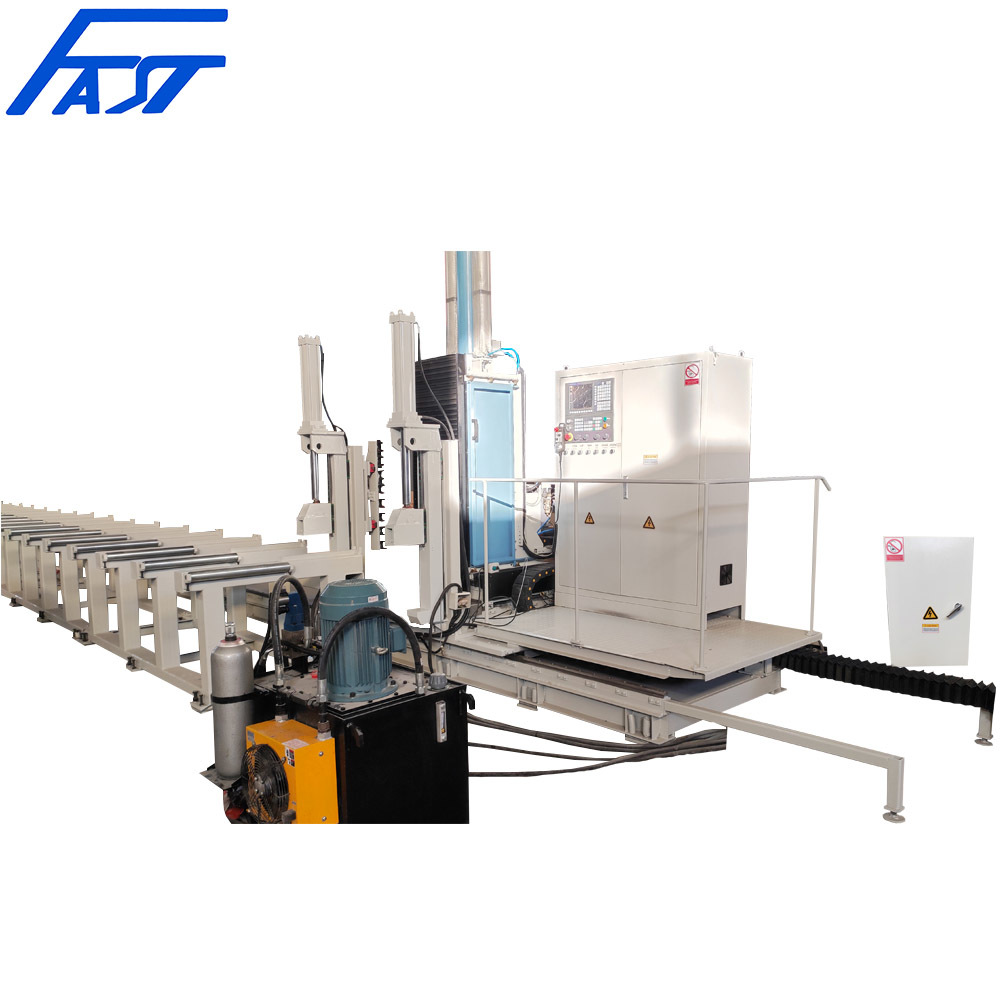

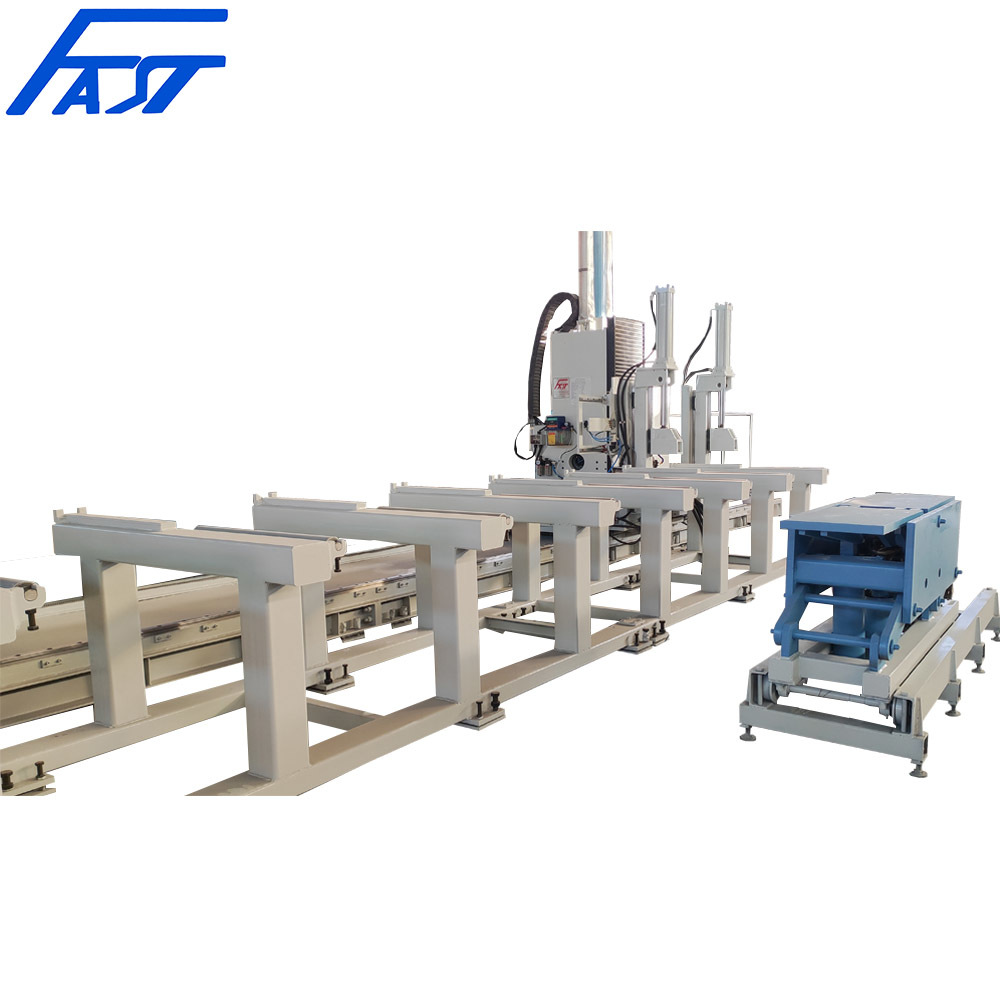

Horizontal Single-Shaft CNC Drilling Machine for H-Beam, U-Channel, Angle, Around Pipe, Square Pipe in Steel Structure

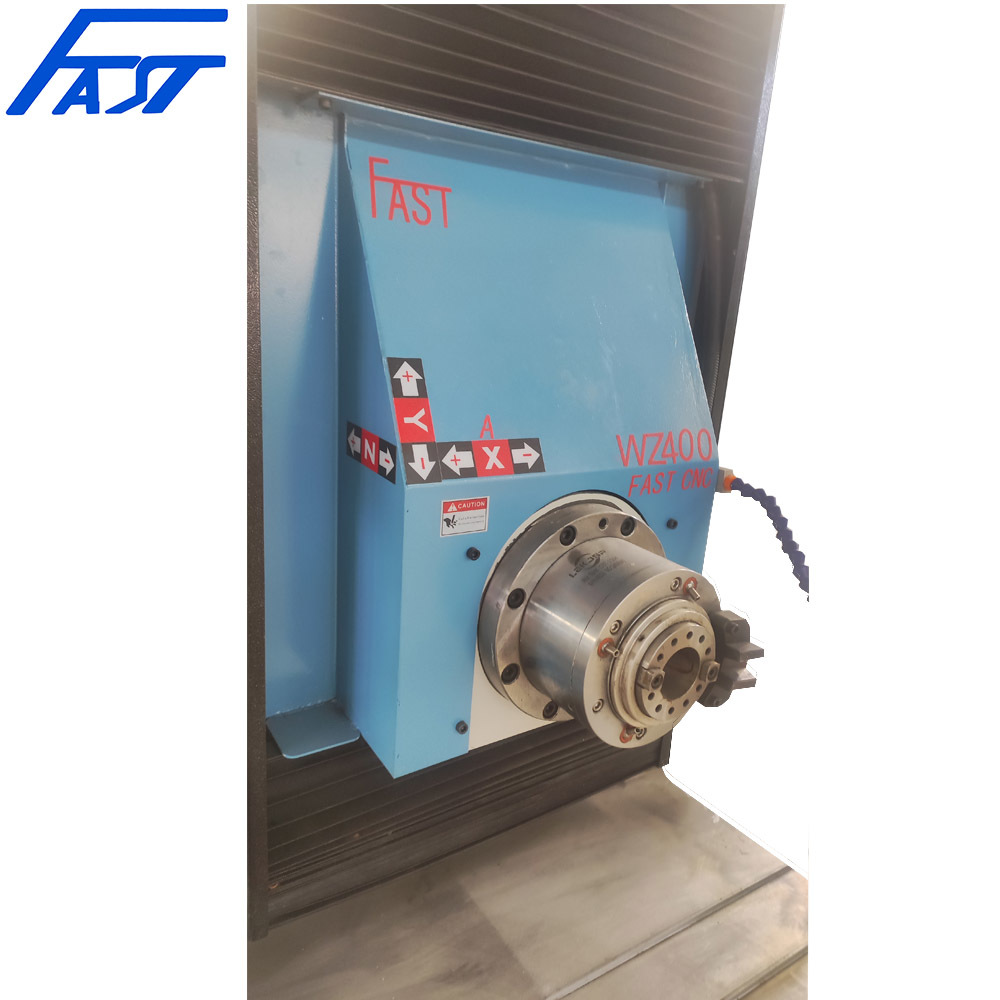

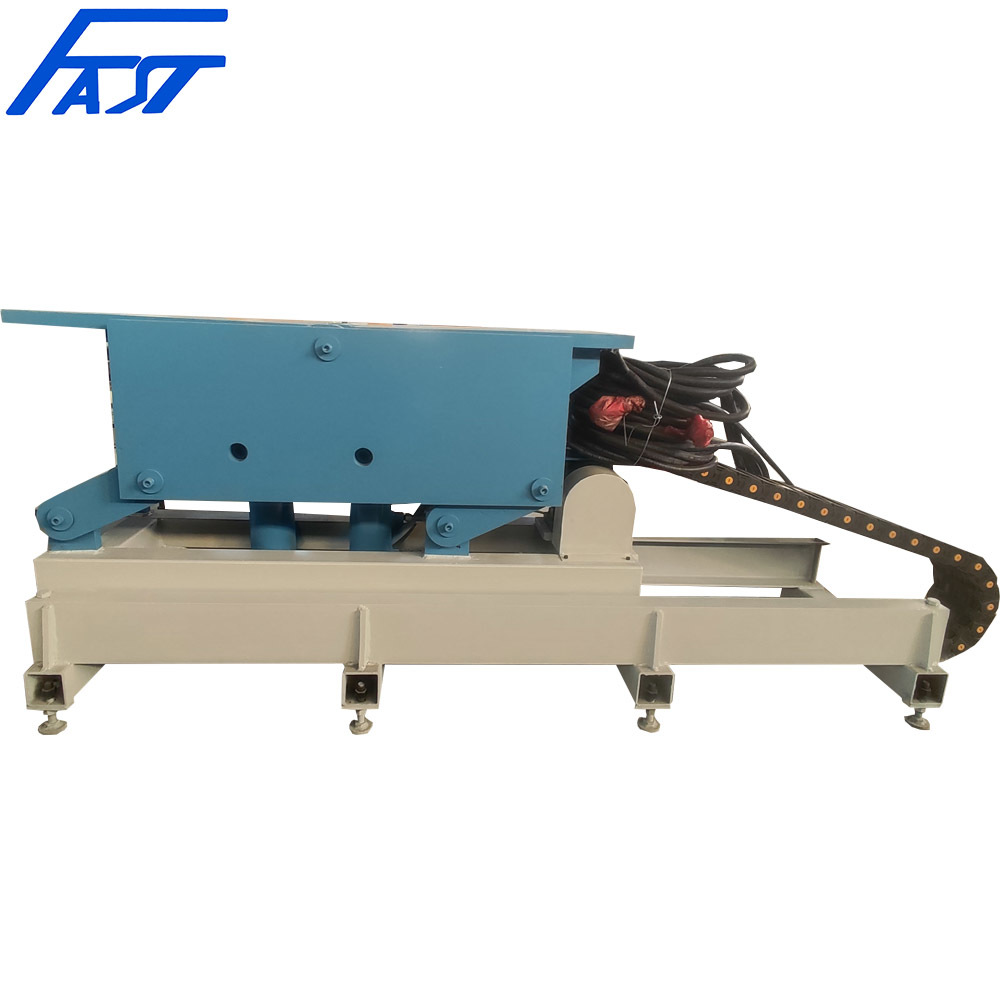

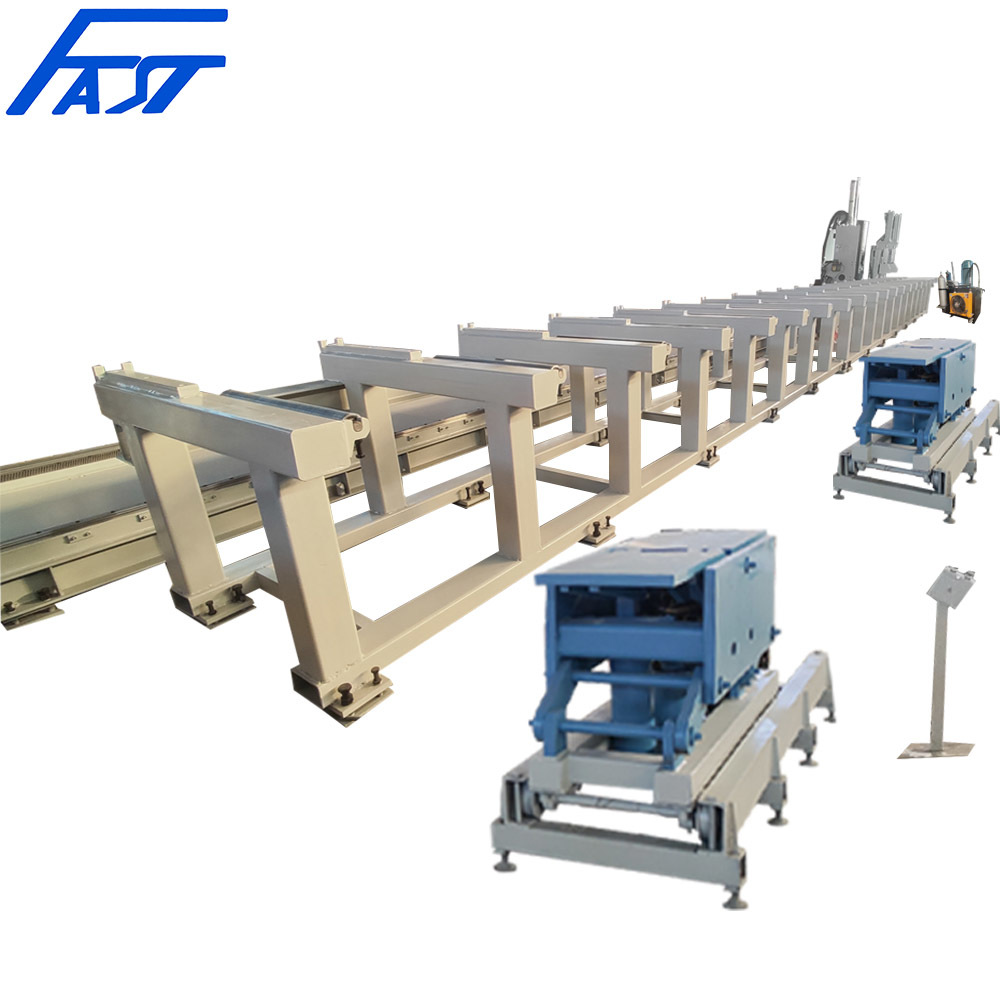

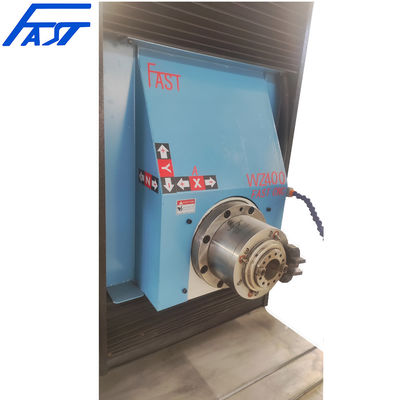

Horizontal Single-spindle Hole Drilling Tapping Milling Engraving Machine for Beams 0

APPLICATION

  • This machine is mainly used for single-sided drilling of H-shaped steel (L, T-shaped steel), channel steel and square pipe, and is widely used in steel structure buildings, bridges, three-dimensional garages and other industries. The 4+1-axis CNC single-sided drilling machine for profiled steel adopts a structure in which the host moves and the workpiece is fixed.Servo motors realize the positioning of the spindle on the side of the profiled steel, that is, the longitudinal direction and the vertical direction, and the servo feeding of one spindle. The spindle is driven by a servo spindle motor via a pulley and a belt. This machine tool has high hole positioning accuracy and high drilling efficiency, and is an indispensable equipment in the steel structure manufacturing industry.

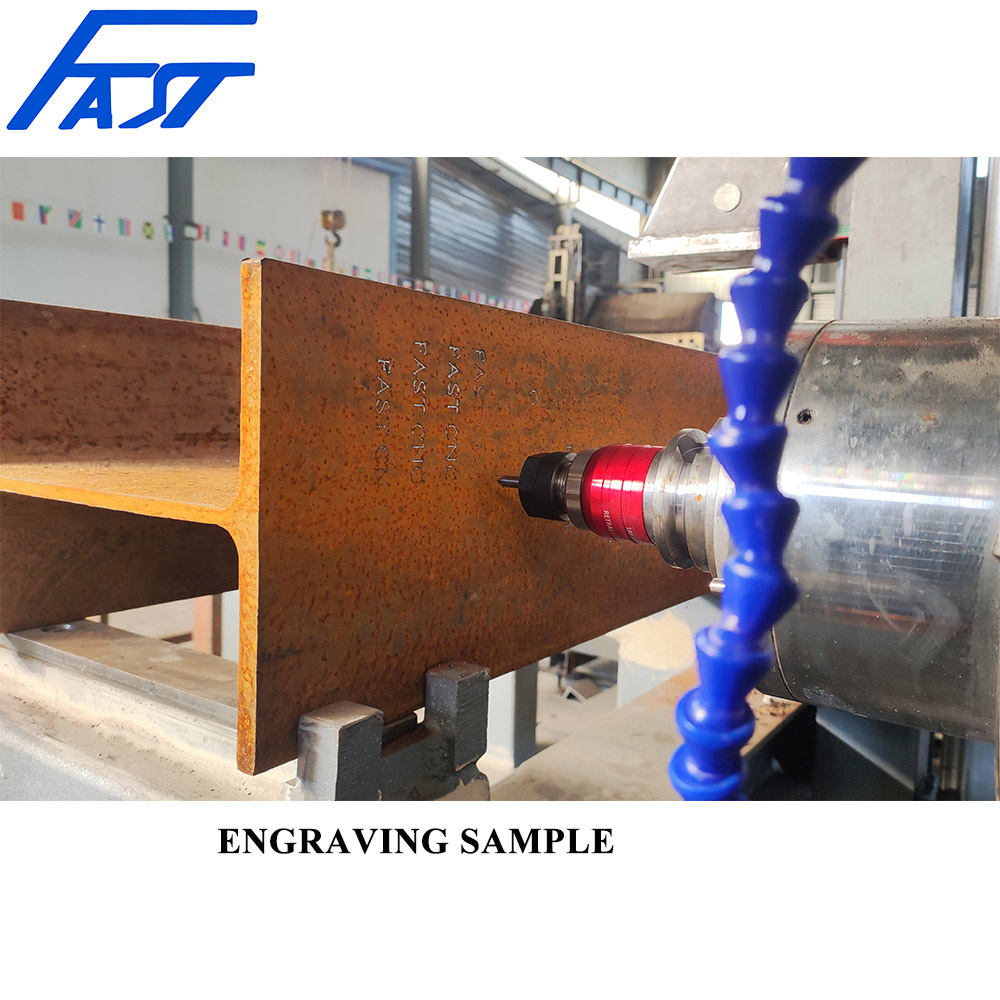

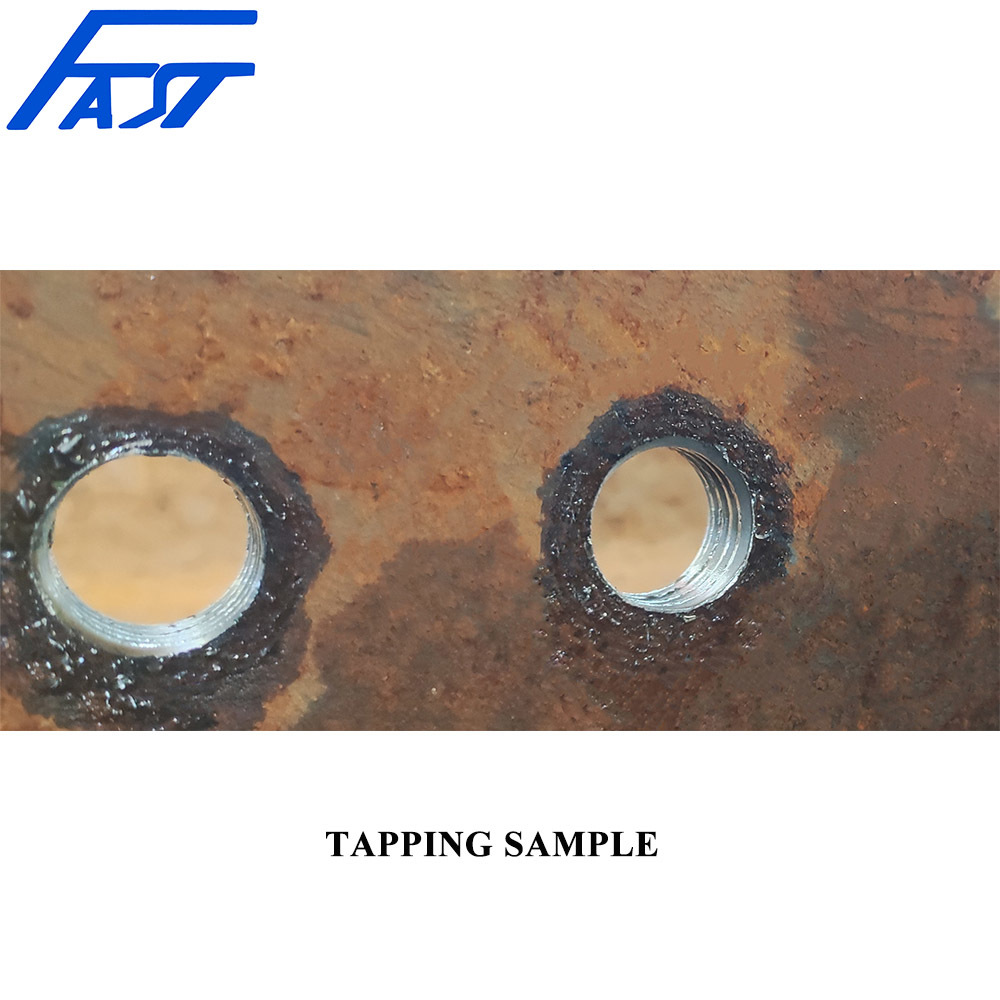

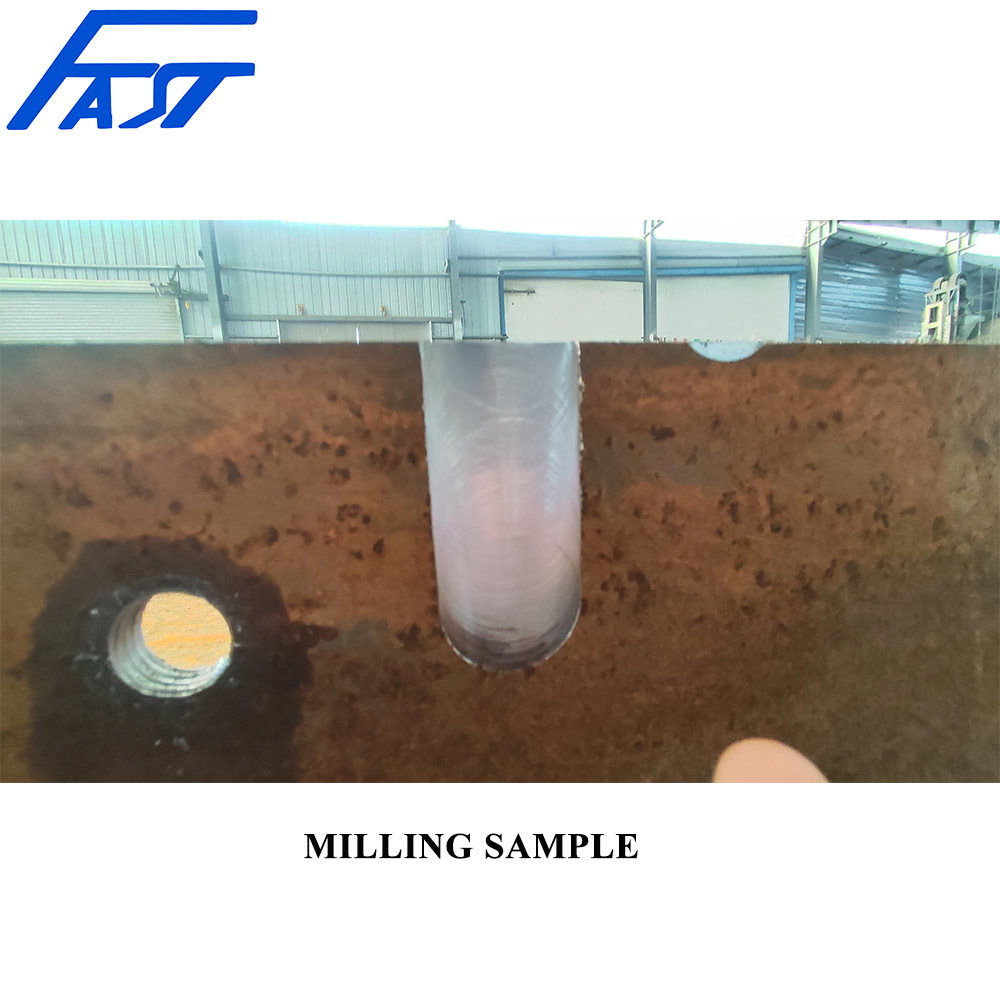

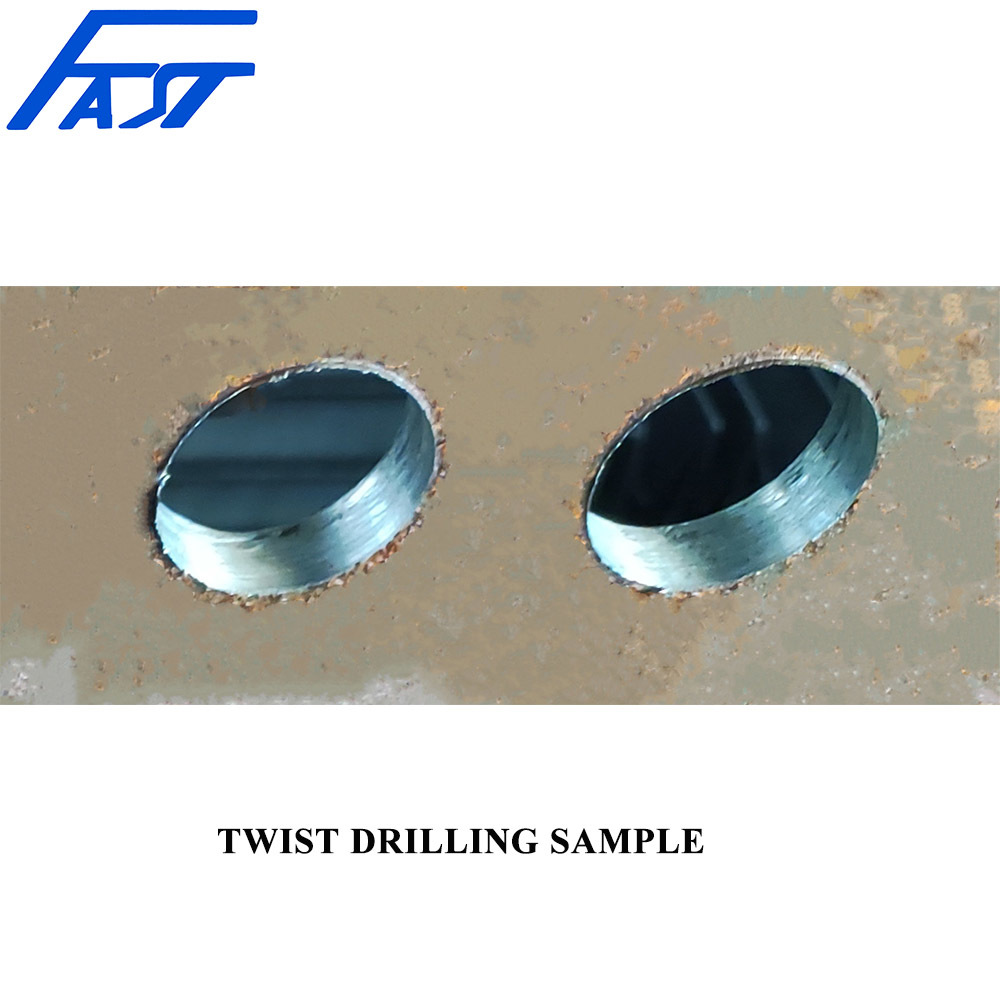

  • Machine tool functions: drilling, milling, tapping, scraping.
  • The machine can be equipped with a tool magazine.

FEATURES

Craft:
Put the workpiece on the worktable → the workpiece close to the reference side → check whether the tool in the tool magazine meets the processing requirements → tool setting (only when the tool length changes) → start the program to automatically drill holes→ Finished drilling → Take workpiece away from the worktable.



TECHNICAL DATA

Name

Unit

Specifications

H-beam: Max. height × Max. width

mm

400×400

H-beam: Max. height × Max. width

mm

150×150

Max. Workpiece length

mm

14000

Maximum workpiece weight

kg

3500

Max. workpiece web thickness

mm

≤30

Spindle Qty

Pc

1

Spindle end taper



BT40(Pneumatic loose tool)

Max. Drilling Diameter

mm

10-40

Tapper

mm

M27

Spindle power

kW

18

Spindle Rated Torque

Nm

118

Spindle speed range

r/min

0~3000

Spindle feed speed

mm/min

0~4000

Spindle feed stroke(Z)

mm

500

Spindle axis(Y)

mm

400

Clamp positioning axis(X1)

mm

14000

Spindle movement stroke(X2)

mm

150

Hydraulic clamp opening

mm

550

Hydraulic clamp max force

t

7 adjustable

Working Precision

Hole distance error in hole group

mm

≤±0.2



Hole spacing error of adjacent hole groups

mm

≤±0.3

Drill cooling method

Spray cooling,  external+inner cooling

Bearing, sliding block lubrication method



Automatic lubrication

Worktable Size L×W

mm

14500x1200x1000mm

Total power

kW

About 30

Overall Dimensions L×W×H

mm

About 15500×2200×2200

Control Method

CNC Controlling System

CNC Axes

4+1

ATC Automatic Tool Changer

8





































































































































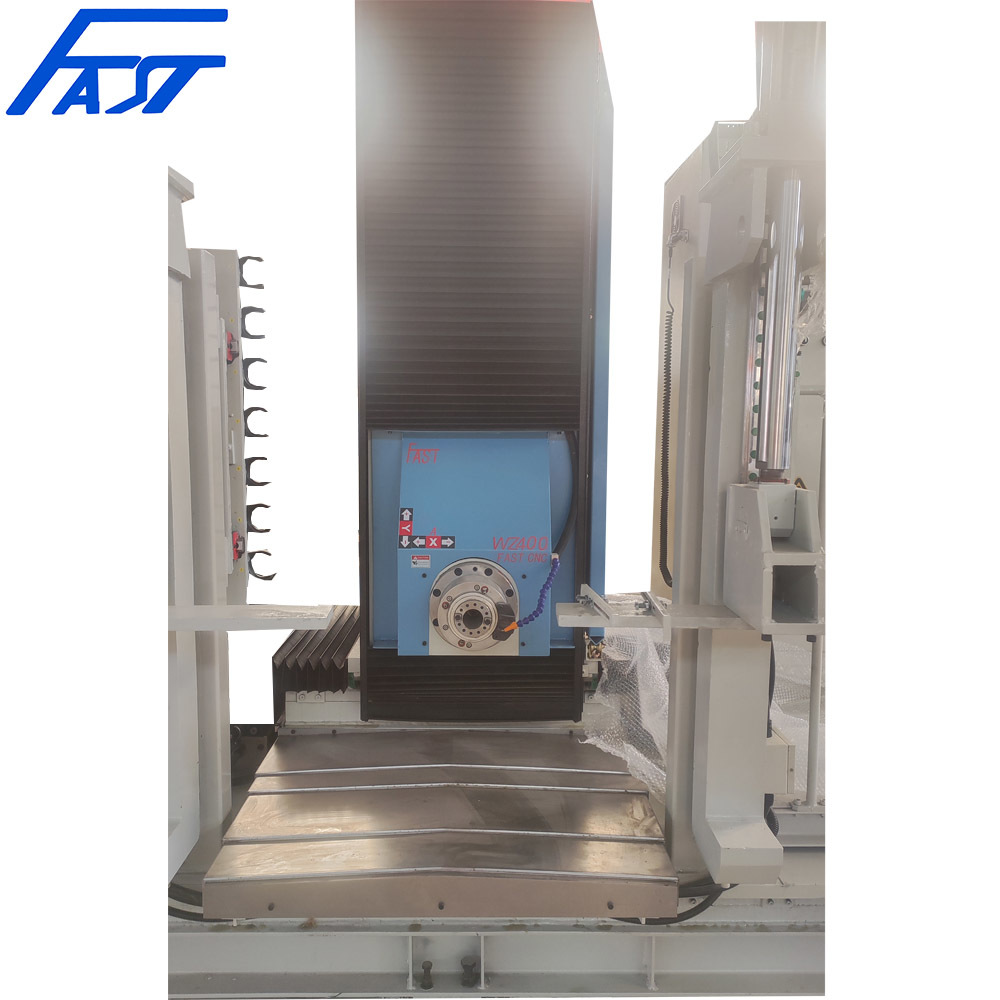

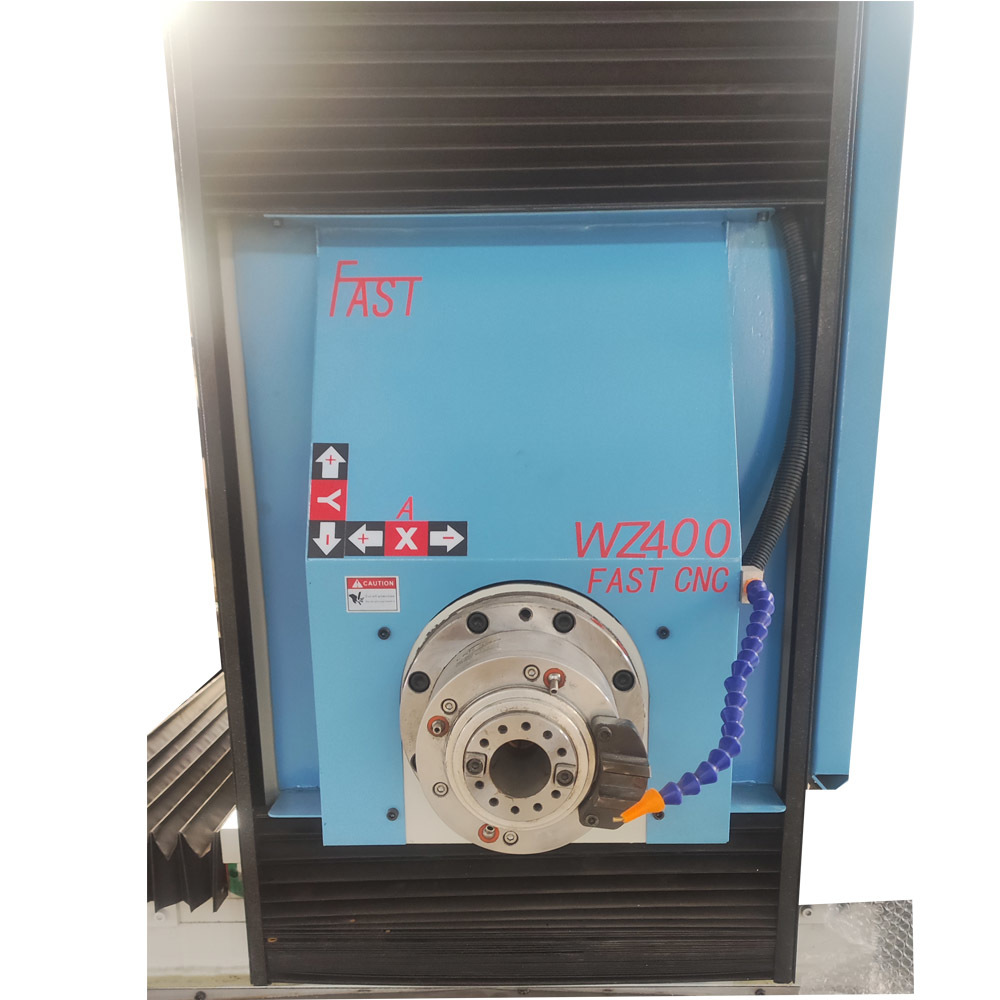

DETAIL IMAGES
