Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532 Exported To Russia

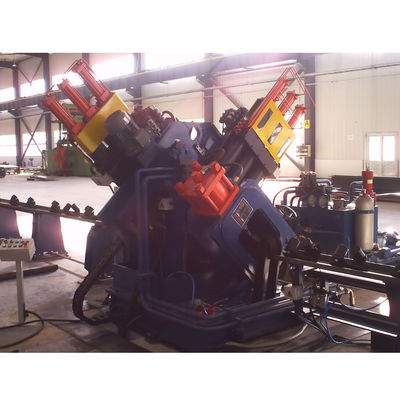

Jinan FAST Efficient CNC Angle Drilling And Marking Machine For Iron Tower Industry Model JX2532

APPLICATION

This machine is used for drilling and marking large-size iron towers and high-strength angle steel in transmission lines. All the holes on the angle steel can be drilled in one pass, and the hole quality and position accuracy are high. It is a special machine for fully automated production.

FEATURES

• Integrated machine with mechanical, electrical and hydraulic elements;
• There is a set of drilling spindles on the two wings of the angle steel. All the holes on the two wings of the angle steel can be processed in one pass;

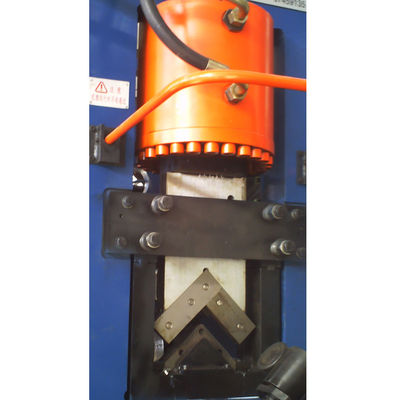

• Double-edged cutting can process harder angle steel; single-edged cutting saves raw materials and cuts the surface neatly;
• The quasi-distance can be set arbitrarily, and the number of punching rows is not limited;
• The marking unit adopts a closed bed structure, which has good rigidity. Four groups of selected programming on the upper marking box. The marking distance can be set at will;
• The hydraulic system mainly completes punching, cutting, marking, pressing and marking box interchanging;
• The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
• The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
• There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
• The main electrical control components and hydraulic and pneumatic components are imported accessories;
• Providing G-code software program that can directly convert CAD graphics into executable machine ;
• Graph display of processed parts;
• With fault self-diagnosis function.

COMPOSITION

TECHNICAL DATA

DETAIL IMAGES

WHY CHOOSE US

COMPANY PROFILE

WORKSHOP

CUSTOMER VISIT

FAQ

CERTIFICATE

PACKING AND SHIPPING
