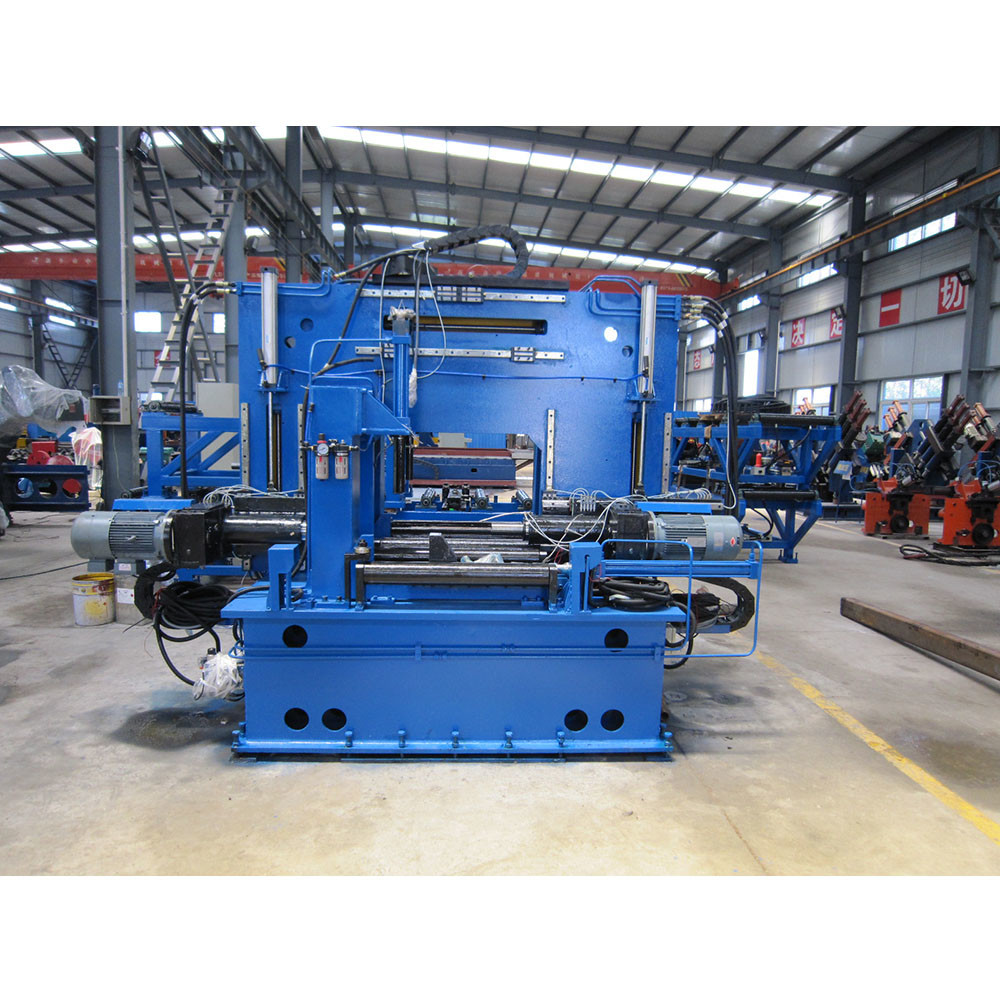

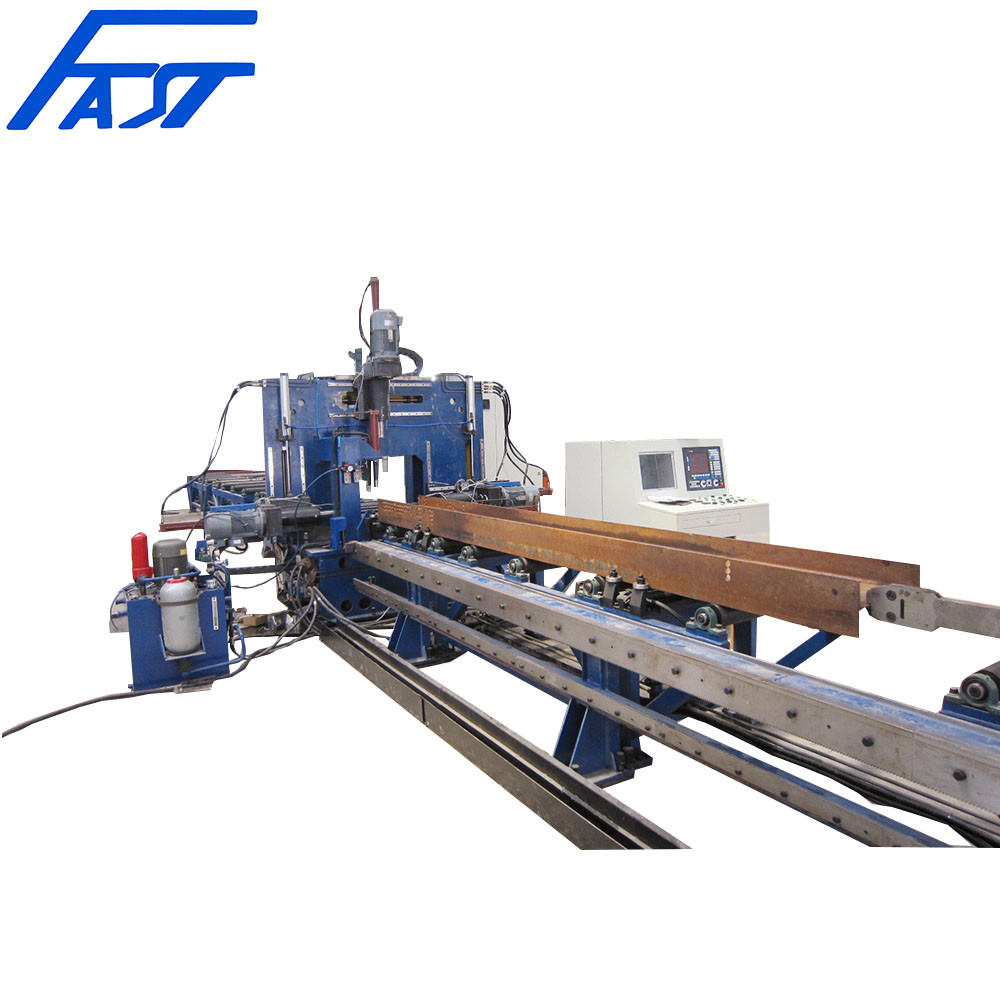

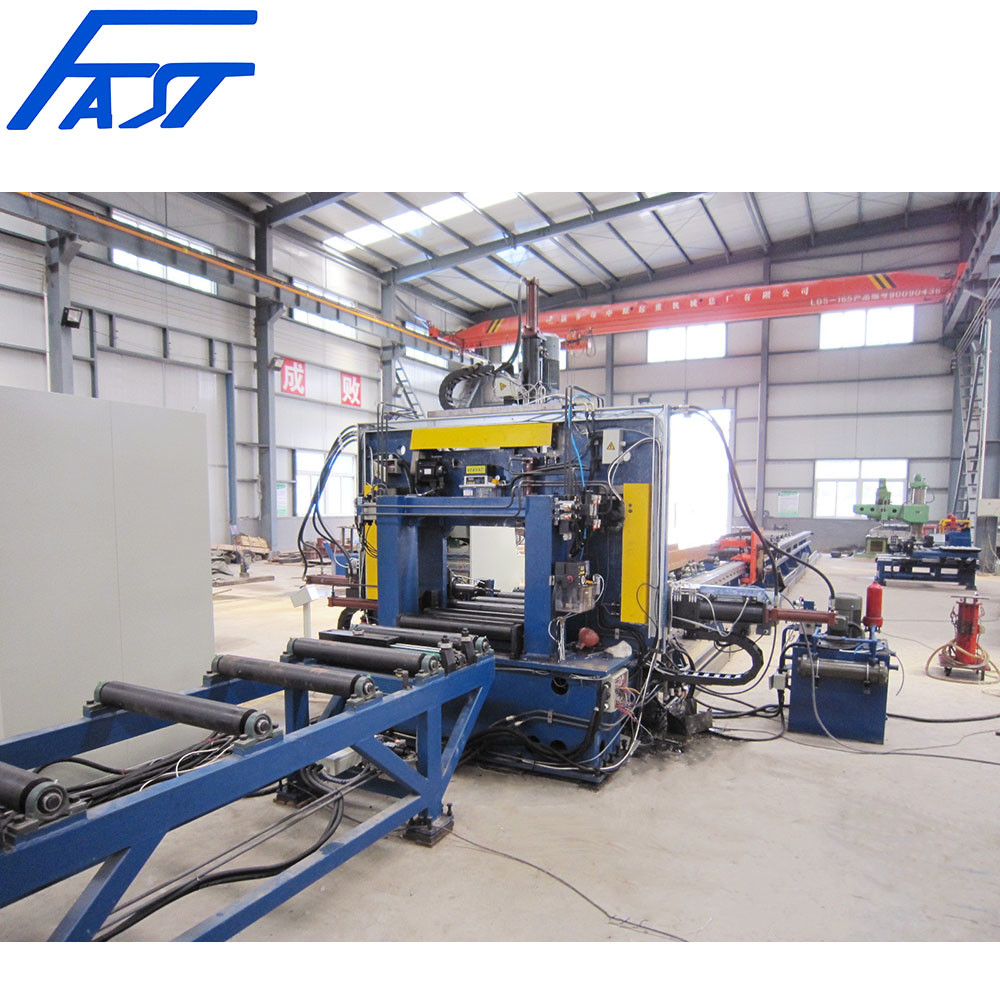

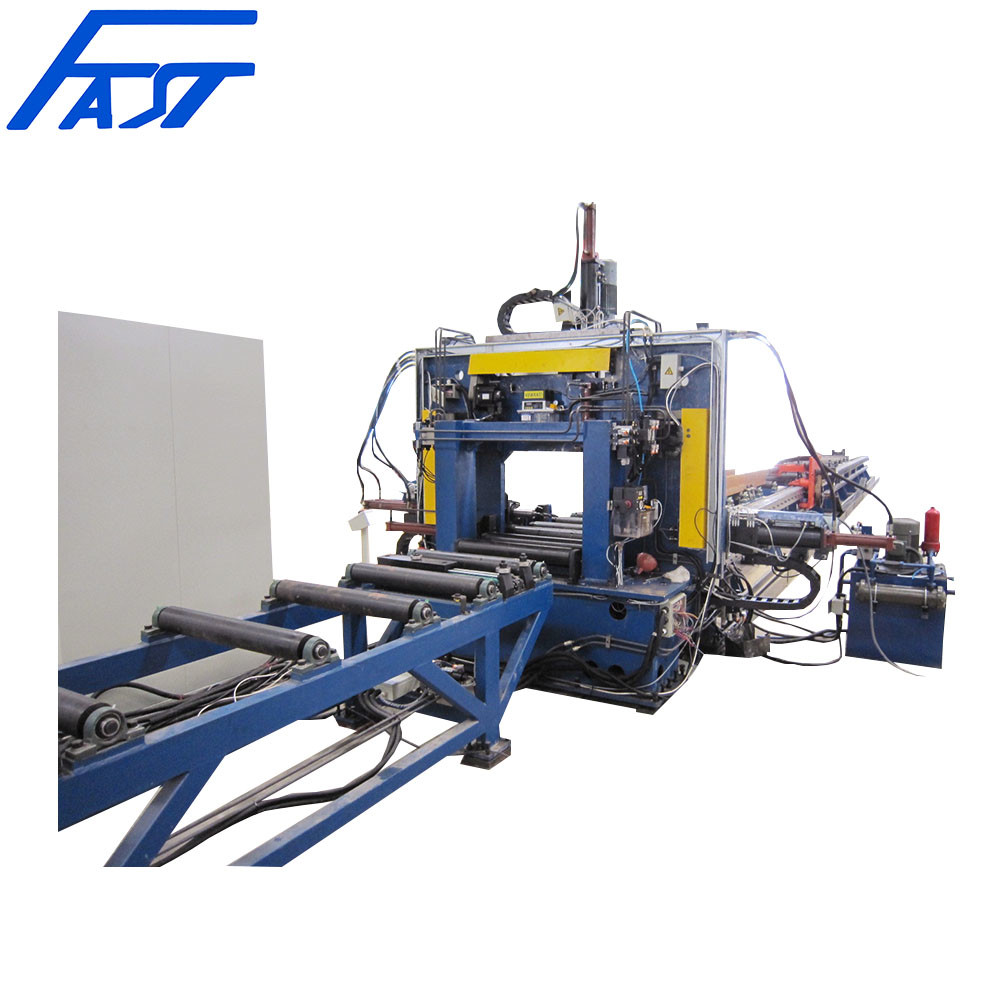

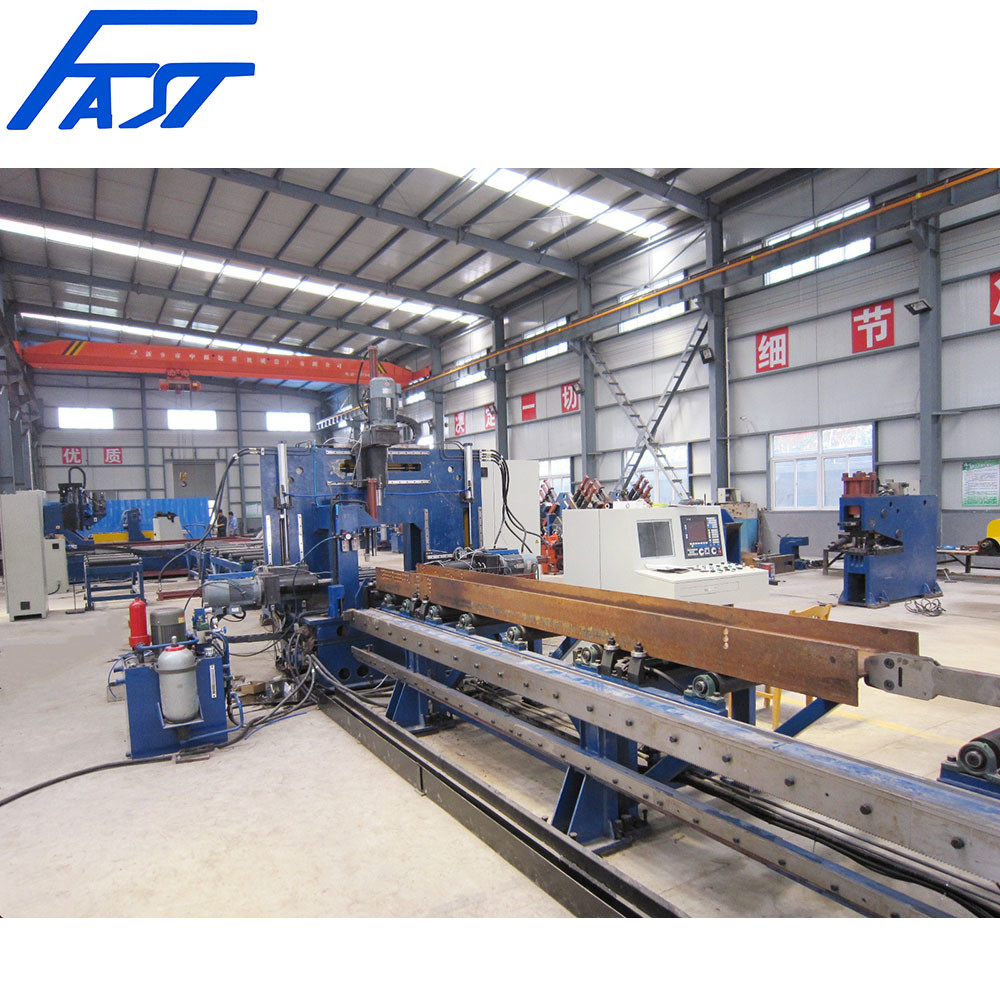

CNC H beam drilling machine

  • CNC H beam drilling machine
  • CNC H beam drilling machine
  • CNC H beam drilling machine
  • CNC H beam drilling machine
  • CNC H beam drilling machine
  • CNC H beam drilling machine
Место происхождения КИТАЙ
Фирменное наименование FAST
Сертификация ISO9001
Номер модели SWZ
Количество мин заказа 1 набор
Цена USD 92880/ set
Упаковывая детали Фильм; фанерный поддон
Время доставки 40~60 дней
Условия оплаты L/C, Western Union, T/T
Поставка способности 300SET/ГОД

Свяжитесь со мной для бесплатных образцов и купонов.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Скайп: sales10@aixton.com

Если у вас возникнут вопросы, мы предоставляем круглосуточную онлайн-поддержку.

x
Подробная информация о продукте
Состояние Новый Гарантия 12 месяцев
Порт Циндао порт Могил 1 набор
Услуга 24 часа онлайн -услуги Напряжение 380 В.
Сертификат ISO9001 ЧПУ или нет Сжигание
производство ODM OEM приемлемый Материал Бурение
Оставьте сообщение
Характер продукции

CNC H Beam Drilling Machine

CNC H beam drilling machine 0

APPLICATION

This machine is special equipment for drilling H-beam, channel steel , box beam and angle steel in steel structure, bridge, three-dimensional parking garage, petroleum platform and other industries.



FEATURES

  • Integrated machine with mechanical, electrical and hydraulic elements;
  • This machine has three power heads. All holes on the three sides of the workpiece can be processed in one pass;
  • There is no need to set thickness of the workpiece and length of the drill bit. The fast forward and work forward conversion are automatically carried out. The processing efficiency is high;
  • The control system is composed of a host computer, servo motor, PLC, external detection sensor, etc.;
  • The CNC feeding trolley is driven by a servo motor with high positioning accuracy;
  • There are positioning cylinders on the upper and lower raceways to ensure the accuracy of drilling;
  • There are various input methods, such as keyboard and mouse input, USB interface input, network interface input.The data generated directly by the 3D or 2D software.
  • The main electrical control components and hydraulic and pneumatic components are imported accessories;
  • Providing G-code software program that can directly convert CAD graphics into executable machine ;
  • Graph display of processed parts;
  • With fault self-diagnosis function.



COMPOSITION

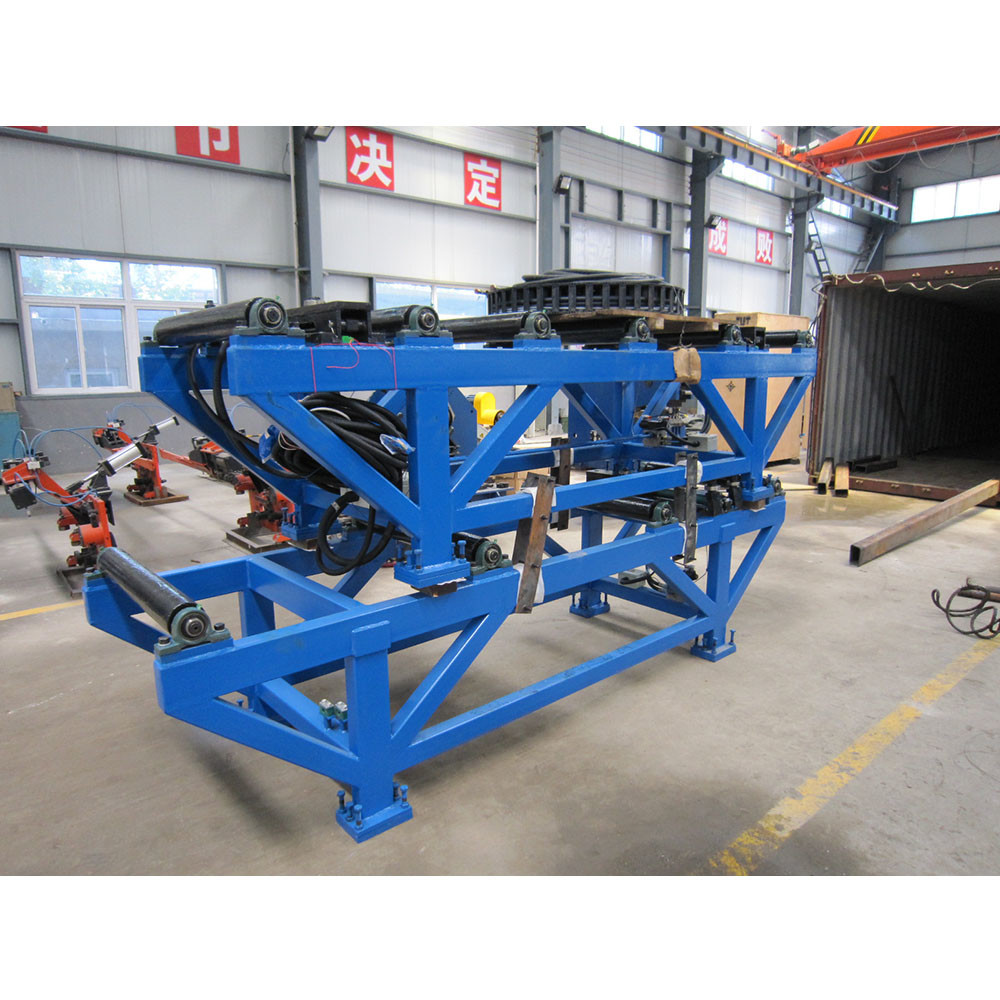

Horizontal storage rack Workpiece lifting and handling trolley (transferred from the material rack to the feeding side raceway)
CNC Infeeding Trolley CNC trolley running track
Loading side power raceway Three-dimensional drilling unit
Offloading side power raceway Side pusher system
Automatic chip conveyor Mist cooling system
Electric control cabinet Hydraulic station



TECHNICAL DATA

Model SWZ700-3 SWZ1000-3 SWZ1250-3
H-beam Max. Web Weight *Max. Flange Height (mm) 700*400 1000*500 1250*600
H-beam Min. Web Weight *Min. Flange Height (mm)



150*100
Automatic Feeding Length (mm)



2000~14000
Max. Web Thickness (mm) ≤60
Max. Drilling Diameter (mm) Φ40
Feeding Speed (mm/min) 20~200
NO. of Spindle 3
Rotation Range of Each Spindle (r/min) 100~700
Spindle Type Morse 4#
No. of CNC Axis 4
Upper Spindle Movement Range (mm) 40~660 40~960 40~1160
Left and Right Spindle movement range (mm) 30~370 30~470 30~570
Marking Function(Optional) Marking Number 36
Character Size (mm) 14*10*20
Total Power (kW) 30 31 34
Overall Dimension L*W*H (m) 29*4.2*3.1 33*4.5*3.1 34*5*3.1
