High Quality H Beam Band Saw Cutting Machine Automatic H/I/U beam Band Sawing Machine
Свяжитесь со мной для бесплатных образцов и купонов.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Скайп: sales10@aixton.com
Если у вас возникнут вопросы, мы предоставляем круглосуточную онлайн-поддержку.
xПодробная информация о продукте
| Состояние | Новый | Гарантия | 12 месяцев |
|---|---|---|---|
| Порт | Циндао порт | Могил | 1 набор |
| Услуга | 24 часа онлайн -услуги | Напряжение | 380 В. |
| Сертификат | ISO9001 | ЧПУ или нет | Сжигание |
| производство | ODM OEM приемлемый | Main Motor Power ( KW) | 7.5 |
Вы можете отметить нужные вам продукты и связаться с нами на доске объявлений.
| Name | Specification | |
|---|---|---|
| Color | Black & White | |
| Controlling System Language | English (Option: Russia） |
Характер продукции

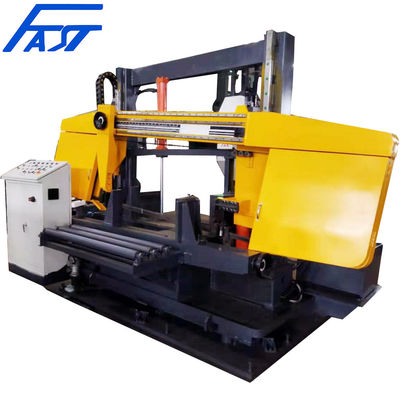

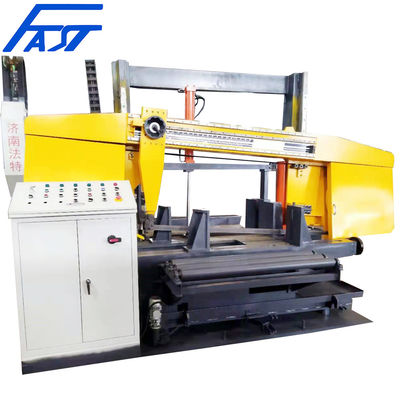

Automatic H/I/U beam Band Sawing Machine
APPLICATION
This machine is used for sawing H-beam, steel bar, round steel and other profiles.Narrow saw cutting, high cutting precision, convenient operation and high production efficiency.
This machine is used to cut all kinds of large-scale steels. The saw frame can rotate on the platform, which can meet the cutting of all kinds of steel end faces at a certain degree. The degree can be adjusted between 0-45 degrees. When the degree is 0 degrees, the maximum cutting height is 600mm, and the width is 1250mm. It can also cut all kinds of black or non-ferrous metal materials after selecting appropriate processing parameters.
FEATURES
- According to the section of the workpiece, the feed speed can be adjusted intelligently. The reciprocating sawing can be realized at the same time;
- This machine realizes high-efficiency and high-precision corner positioning;
- The automatic fixed-length feeding mechanism is optional to realize the automatic control of the whole process;
- There are two sets of hydraulic vise at the front and back. The two sets can be operated separately;
- Pre-input workpiece parameters, processing parameters, real-time data display and monitoring;
- This machine is specially designed for all kinds of section steel processing.
DESCRIPTION
1.Double column design, with high strength bed, in the high-speed sawing has a good vibration absorption performance.
2. It can rotate itself, and the longer workpiece can be inclined to cut from 0° to 45° without rotation, so as to maintain the continuity of production.
3, Saw blade drive motor power, to ensure the main transmission performance is good, specialized processing of steel structure industry of various types of steel.
4. Automatic hydraulic tension device of saw blade can keep the saw blade stable in high-speed rotation and extend the service life of the saw blade.
5. The left, middle and right three clamping arms and guide the saw blade, prevent the saw blade deviation, to overcome the phenomenon of clamping saw in high-speed cutting.
6. Saw blade produces fine sawing, high section accuracy, and greatly reduces material consumption.
7. The automatic cooling fluid works with the feed of the saw blade to optimize the lubrication of the saw blade and reduce the temperature rise of the saw blade.
8. The laser alignment function, and manual fine-tuning workpiece advance and retreat mechanism, facilitate the length cut.

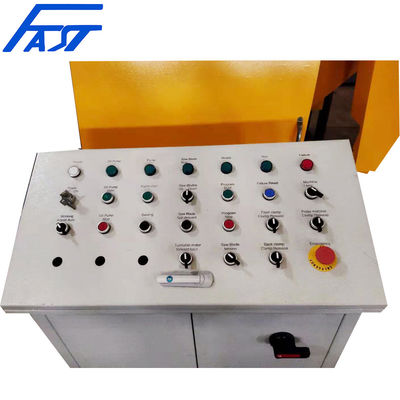

9.PLC control, saw cutting speed through the main motor frequency conversion adjustable, saw cutting feed speed through hydraulic stepless speed regulation, greatly improve productivity.
10. The key mechanical, hydraulic, electrical components and components selected from well-known companies at home and abroad.
11. More features, please contact us.
COMPOSITION
| Sawing frame | Worktable |
| Vertical feeding device | Vertical pressing device |
| Rotation worktable | Carriage for feeding workpiece |

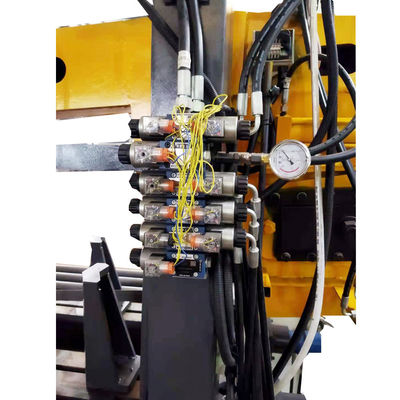

| Hydraulic system | Cooling system |
| Electric system | Carriage for feeding workpiece |
TECHNICAL DATA
| Model | SAW600 | SAW1000 | SAW1250 |
| Sawing H-beam Size (without Rotation)(mm)(Section H*W) | H-Beam: 600*400 | H-Beam: 1000*500 | H-Beam: 1250*600 |
| Square Beam: 400*400 | Square Beam: 500*500 | Square Beam: 600*600 | |
| Round Steel:Φ400 | Round Steel:Φ500 | Round Steel:Φ600 | |
| Blade Specifications | T: 1.3/W: 41/C: 6600 | T: 1.6/W: 54/C: 7600 | T: 1.6/W: 54/C: 8300 |
| Saw Blade Speed (m/min) | 20-100m/min | ||
| Worktable Height (mm) | 800 | ||
| Rotation Angle (°) | 0°~45° | ||
| Cutting feed speed | Stepless feed | ||
| Rotation Angle structure | Key control | ||
| Main Motor Power ( kW) | 5.5 | 7.5 | |
| Motor power of turntable ( W) | 40 | ||
| Cooling system(W) | 100 | ||

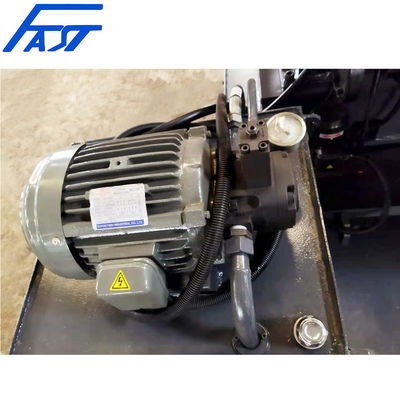

| Hydraulic Motor Power (kW) | 4 | ||
| Net Weight (kg) | 5000 | 6000 | 6500 |
★ All of these models can be customized according to customer requirements.
