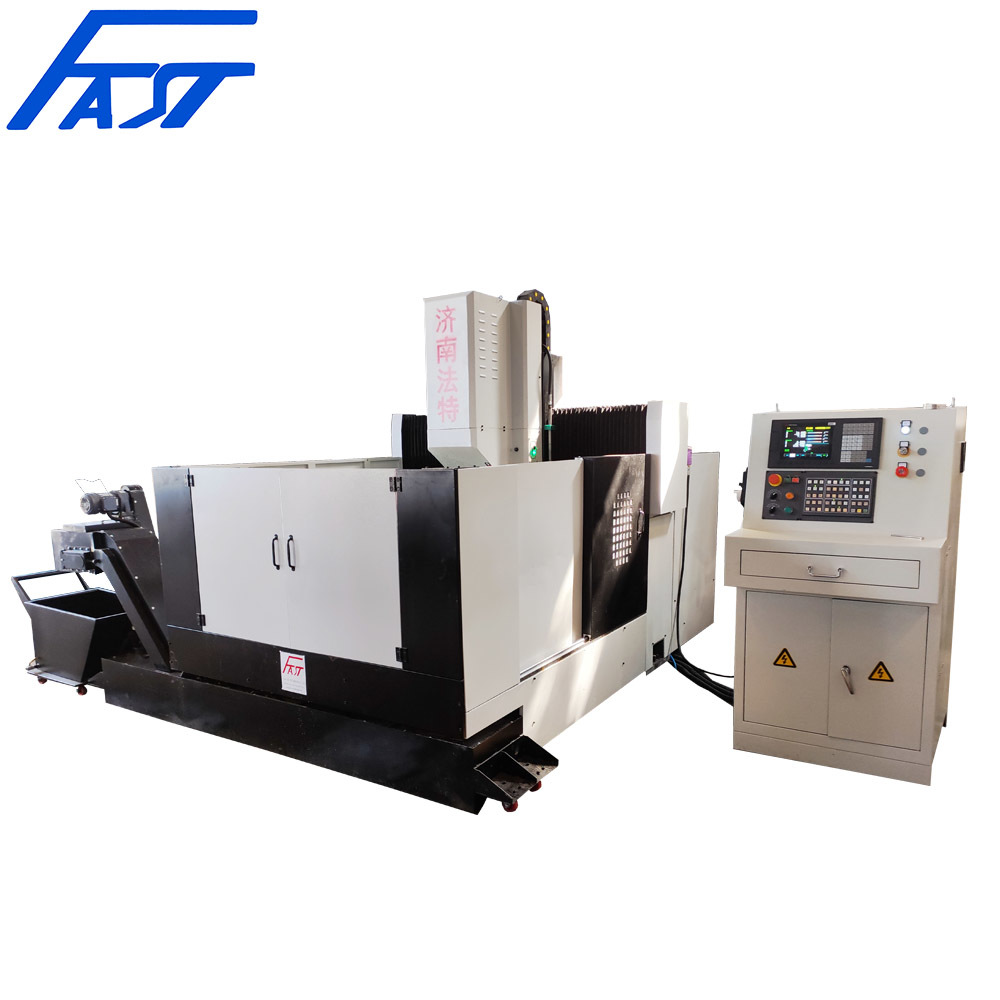

PZG1010-BT50 Factory Sale 1000*1000mm CNC Flange Drilling Milling Machine For Bolier Flange Plate

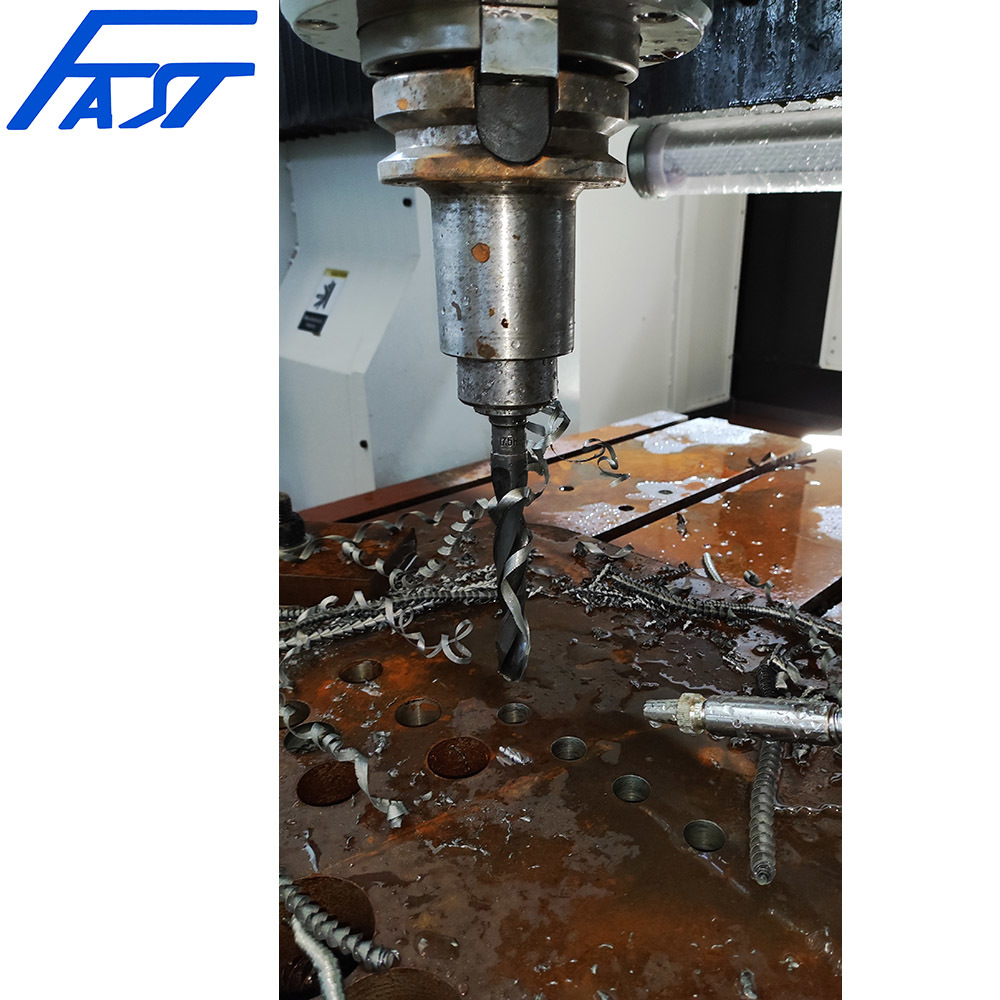

Construction Structure High Speed CNC Plate Drill Machine For Flanges 1000*1000mm 0

APPLICATION

The machine is mainly used for drilling, milling, chamfering and tapping on flanges, tubesheets, and machine bases. Internal cooling high-speed drilling with carbide milling cutters or external cooling drilling with ordinary high-speed steel twist drills, end mills can also be used to mill grooves and special tools are used to mill the expansion grooves of the tube holes of the tubesheet. The machining process of the machine is digitally controlled. The operation is very convenient. It can realize automation, high precision, multi-variety and mass production.



TECHNICAL DATA

 PZG1010 Technical Data

Name

Specification

Mode

Gantry type

Table size (L*W)

1300*1100mm

Max. workpiece size (L*W)

1000*1000mm

Distance between the bottom of the spindle to work table

230~630mm

Processing Capability

Max. Drilling Depth

250mm

Max. Drilling Diameter

60mm

Milling Diameter

Milling cutter head diameter 100mm

Drilling Power Head

Type of Power Head

BT50 servo control power head

Quantity

1

Type of Clamp

Butterfly spring pull rod device (air pressure tool)

Spindle Technical Data

Spindle Power

15kW

Spindle Rotating Speed

30~3000r/min

Type of Connection mold of spindle

BT50

Longitudinal movement X Axis

Max. Stroke

1000mm

Speed of X axis

0~8000mm/min

Servo motor power of X axis

2.3kW

Transverse movement of Y Axis

Max Stroke

1000mm

Speed of Y axis

0~8000mm/min

Servo motor power of Y axis

2.3kW

Vertical Stroke of Z Axis

Max. Stroke

400mm

Feeding Speed of Z axis

0~5000mm./min

Servo motor power of Z axis

2.3kW (With brake)

CNC Axes

4 Axes

Machine Accuracy

Positioning Accuracy

<0.05mm

Re-positioning Accuracy

≤0.04mm

Verticality of Spindle to work table

≤0.03mm

Run out of the bottom of spindle and the side spindle

≤0.02 mm

Pneumatic system pressure

0.6MPa

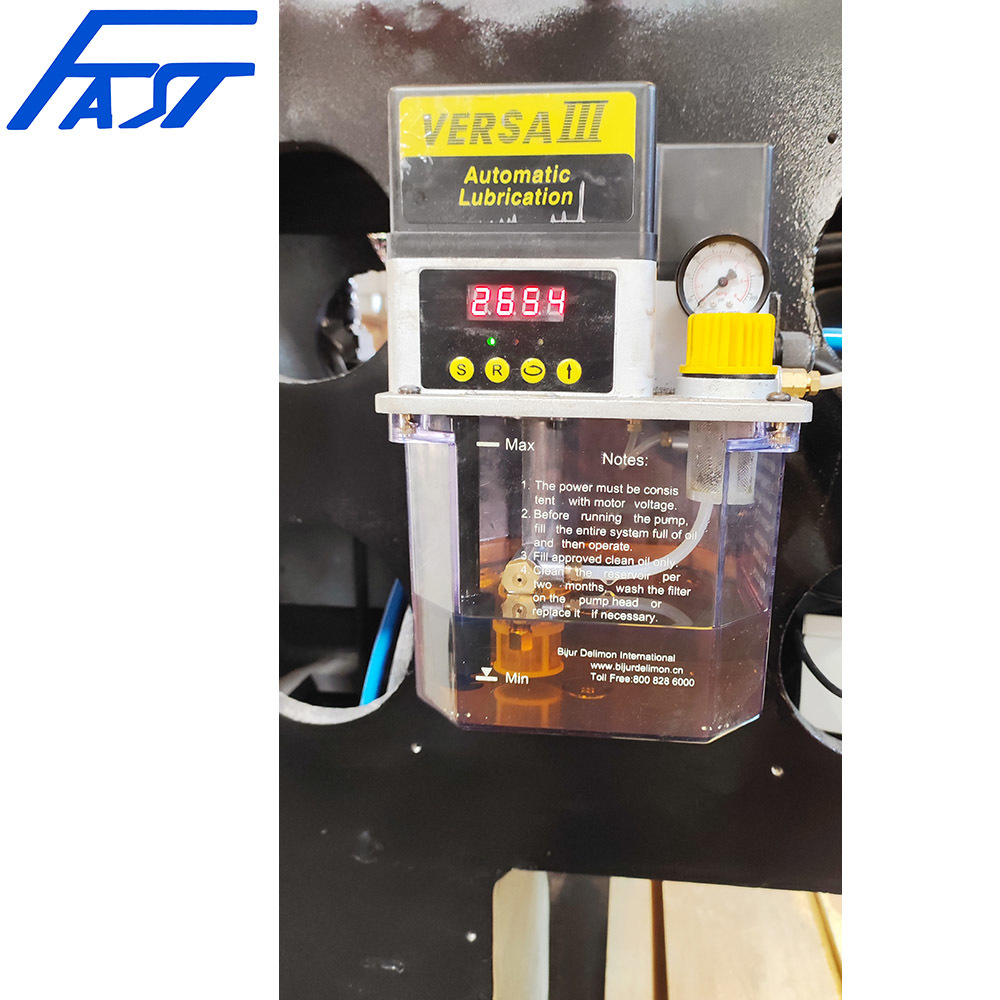

Lubrication system pressure

1.0MPa

Cooling system & filter system

Power

5kW

Flue

50L/min

Accuracy

20μm

Inner Cooling System Max. Pressure

5.0MPa

Out cooling system pressure

0.2MPa

Outline dimension(L*W*H)

3200*2000*2600 mm

Total Power

Appx.30kW

Net Weight

Approx. 5T

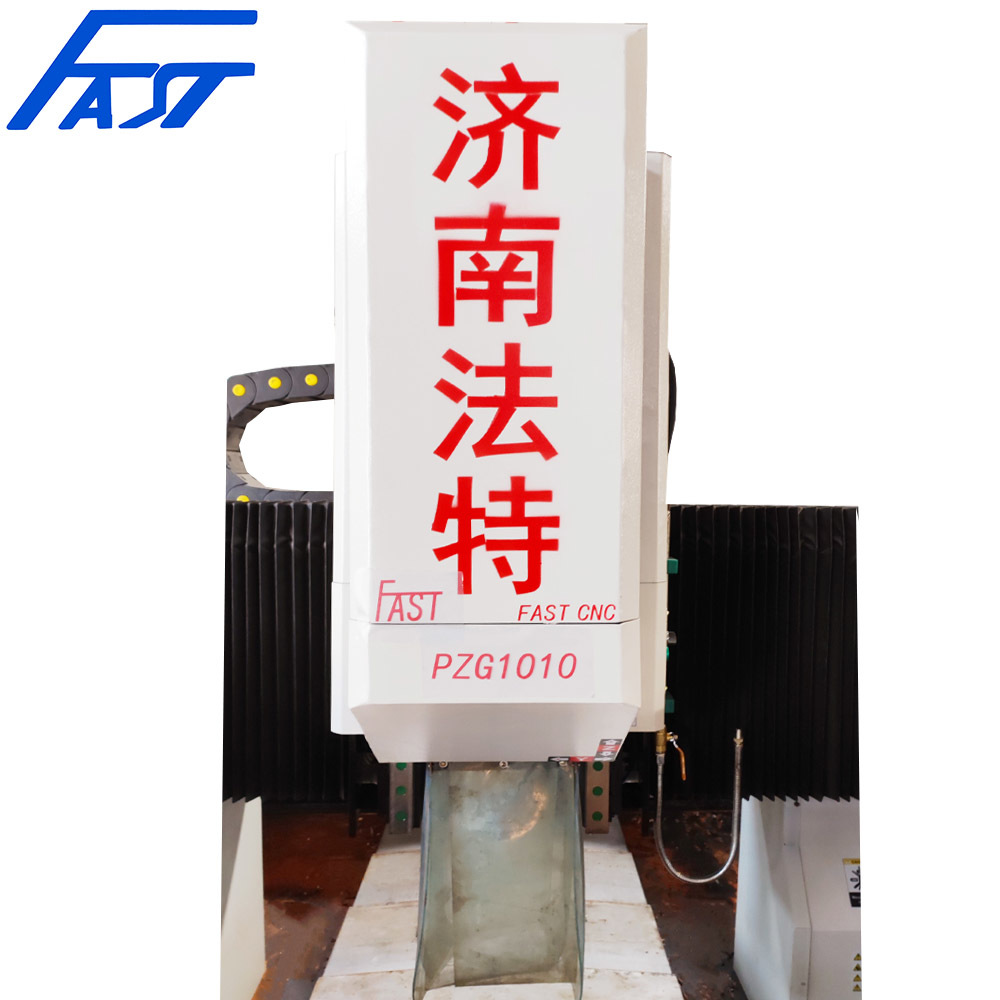

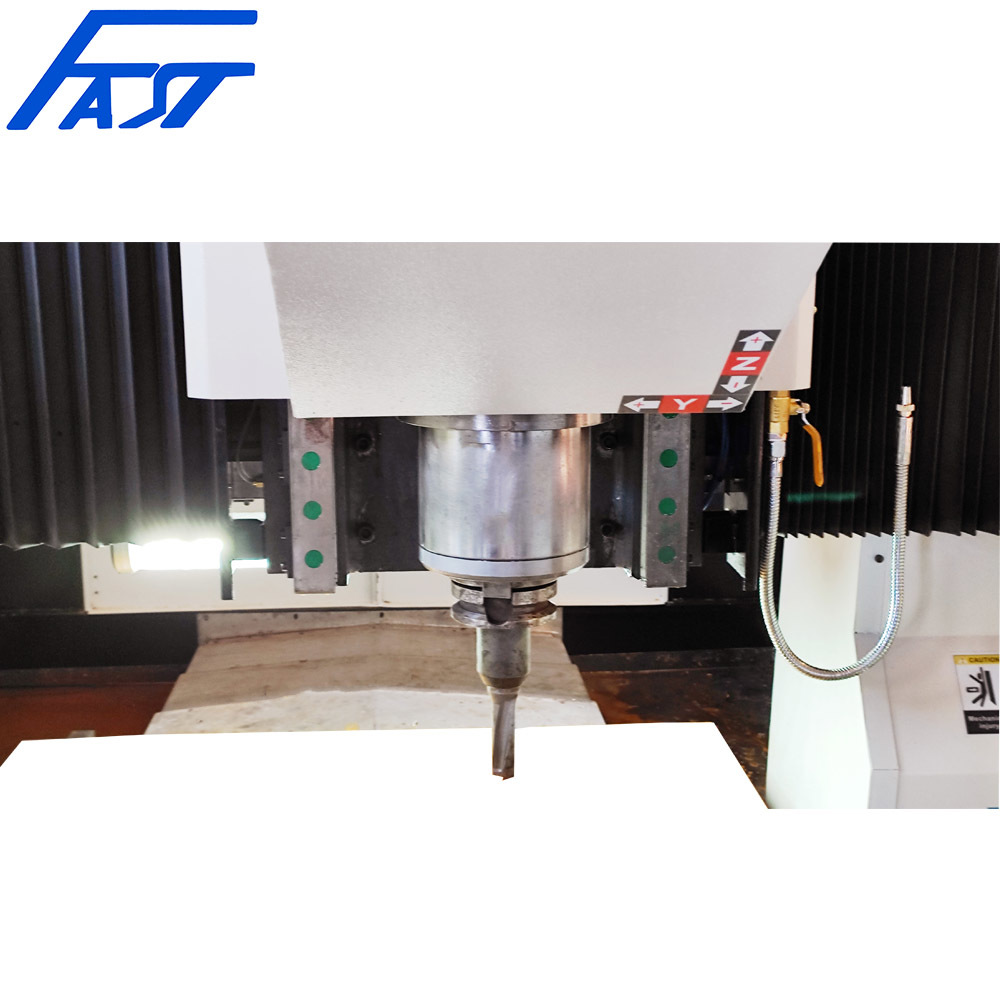

DETAIL IMAGES

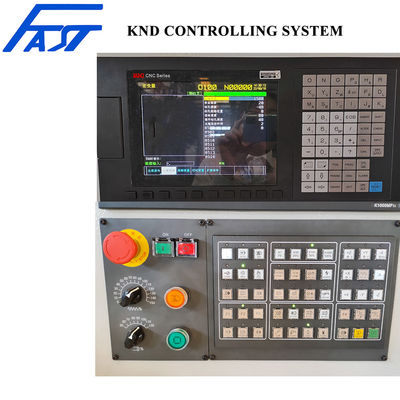

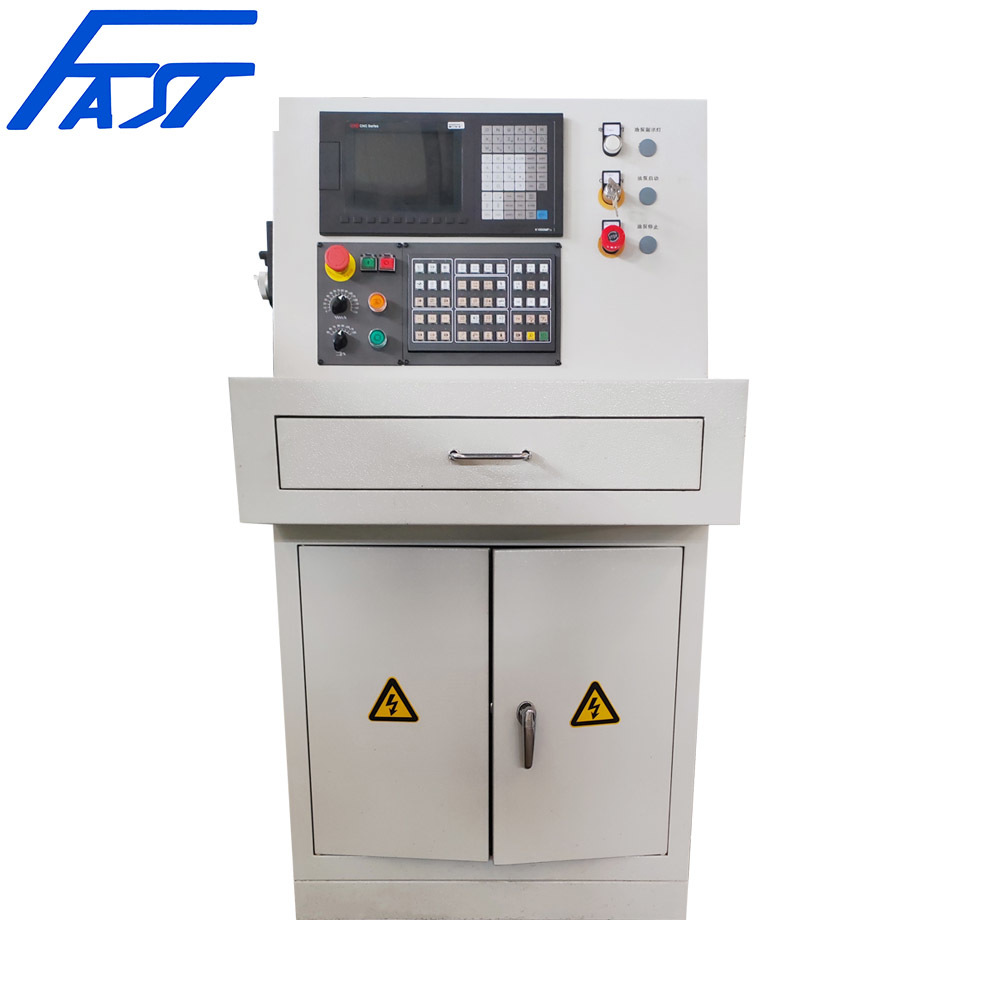

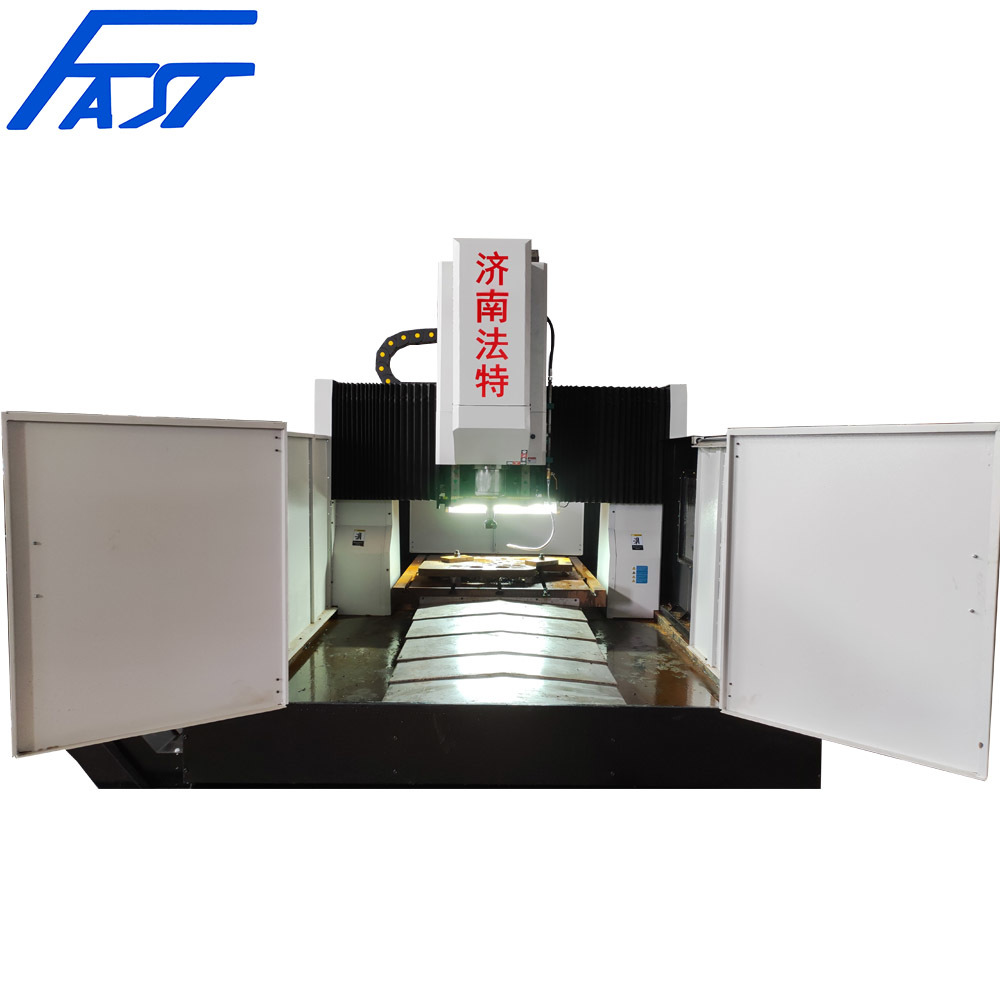

 Construction Structure High Speed CNC Plate Drill Machine For Flanges 1000*1000mm 1Construction Structure High Speed CNC Plate Drill Machine For Flanges 1000*1000mm 2

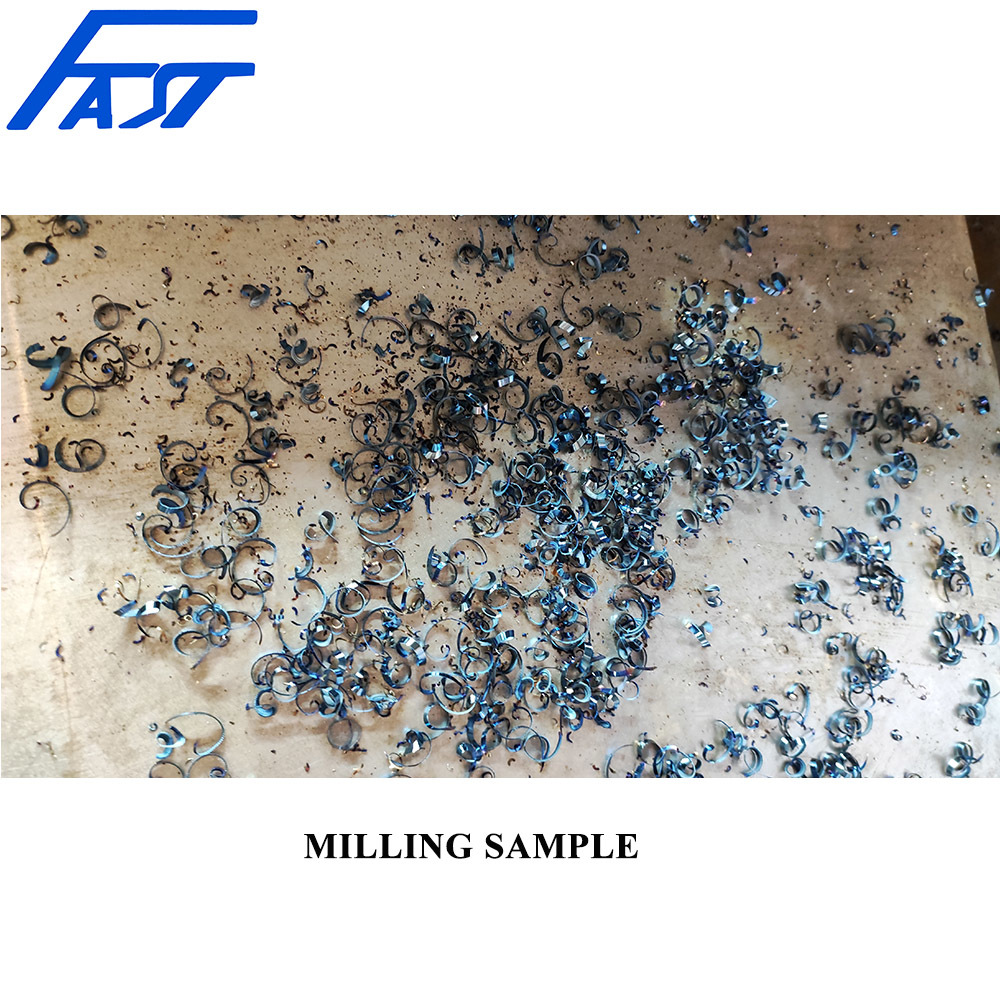

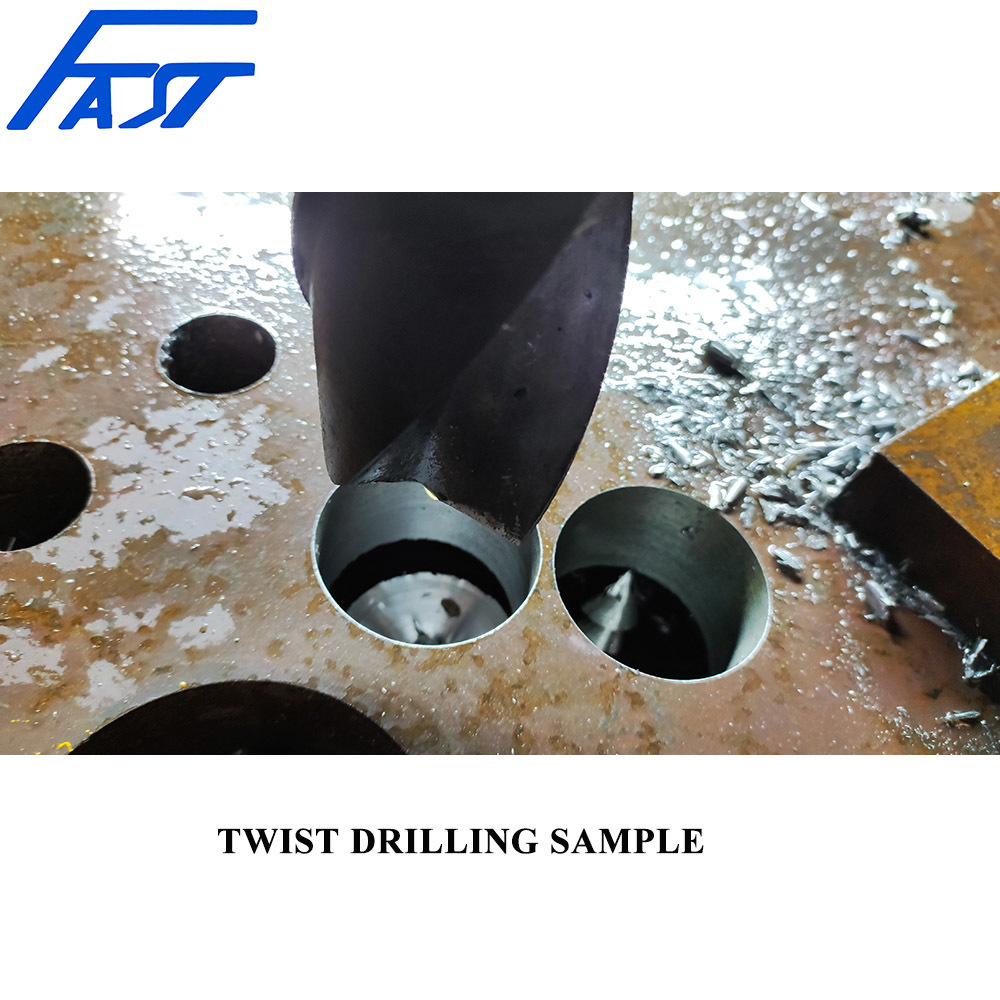

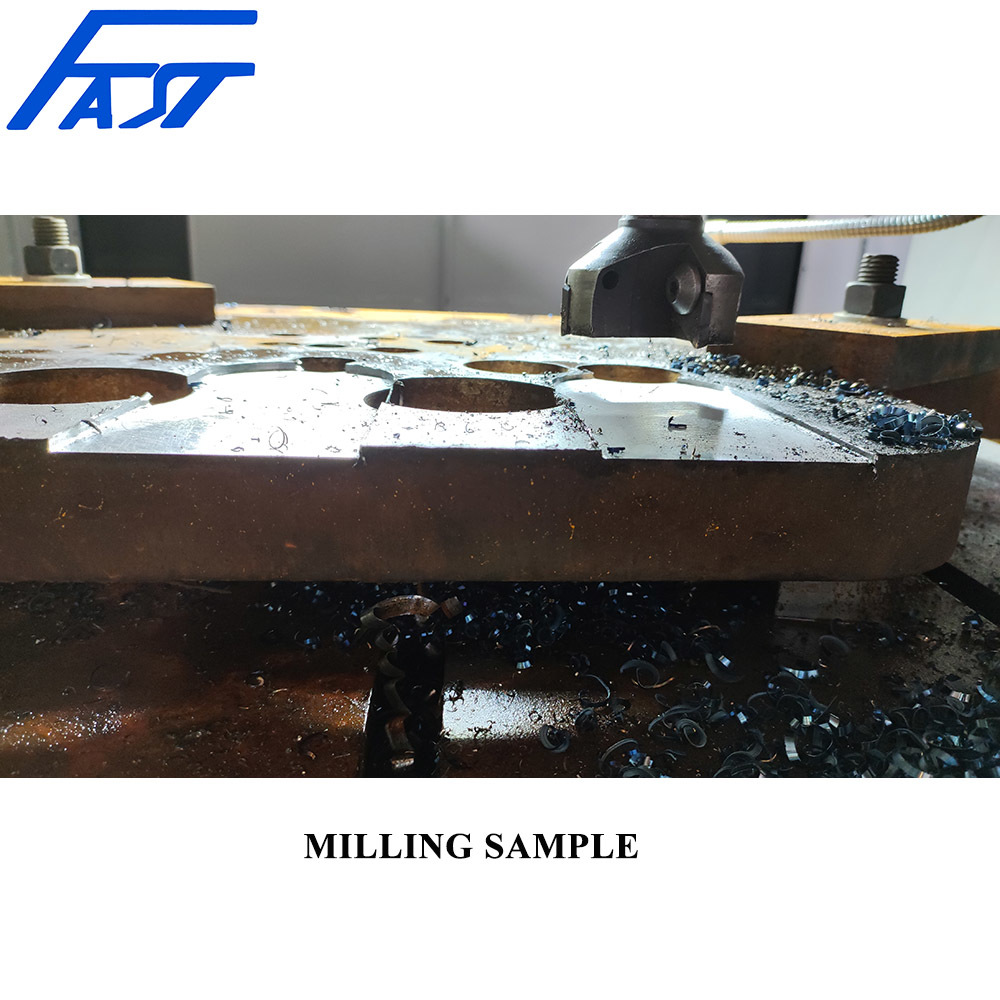

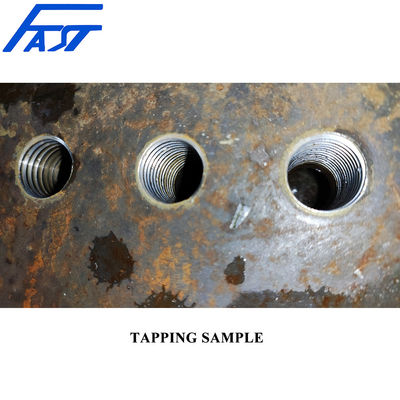

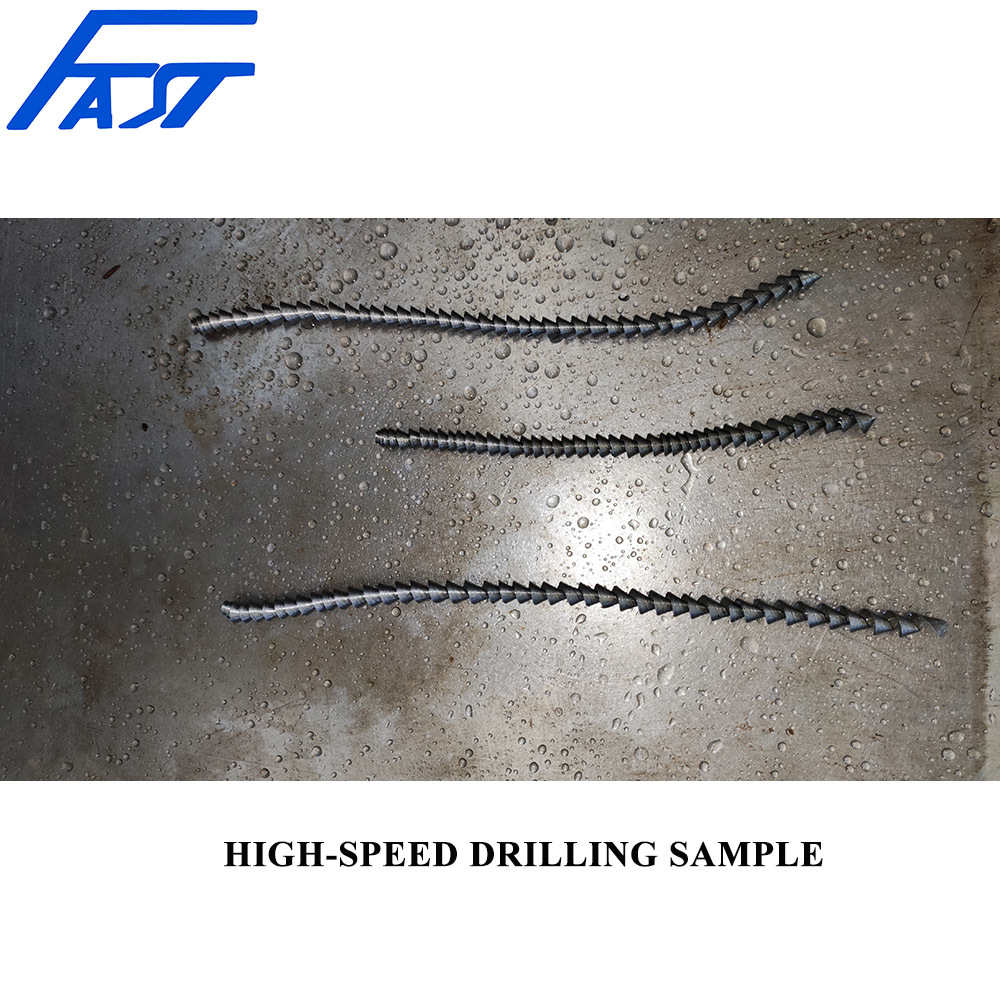

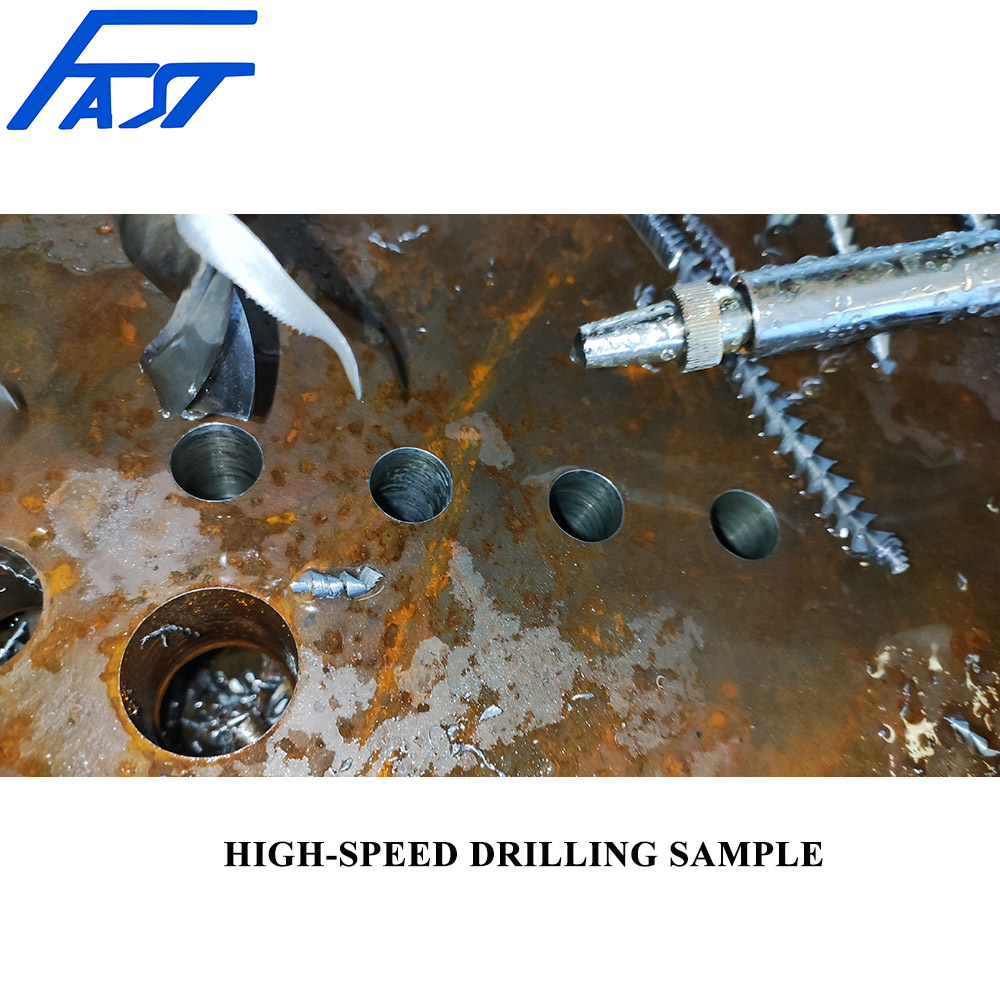

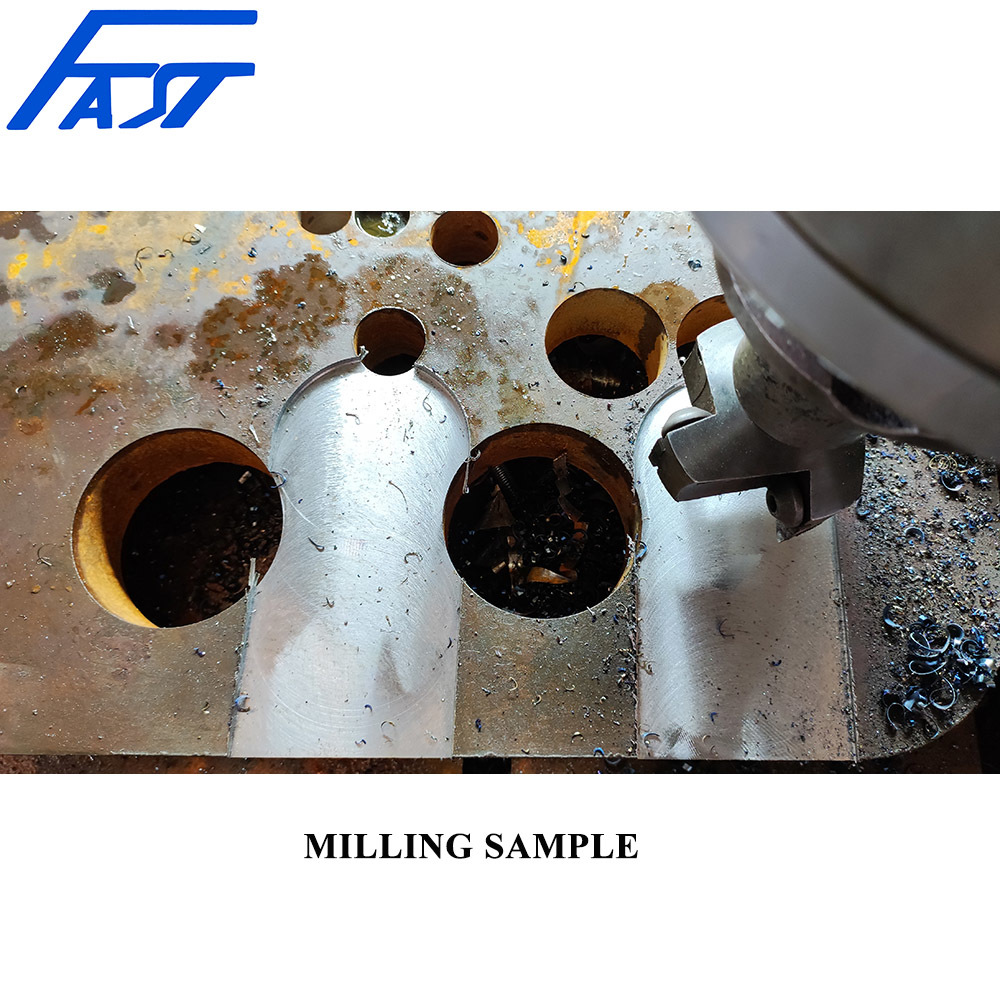

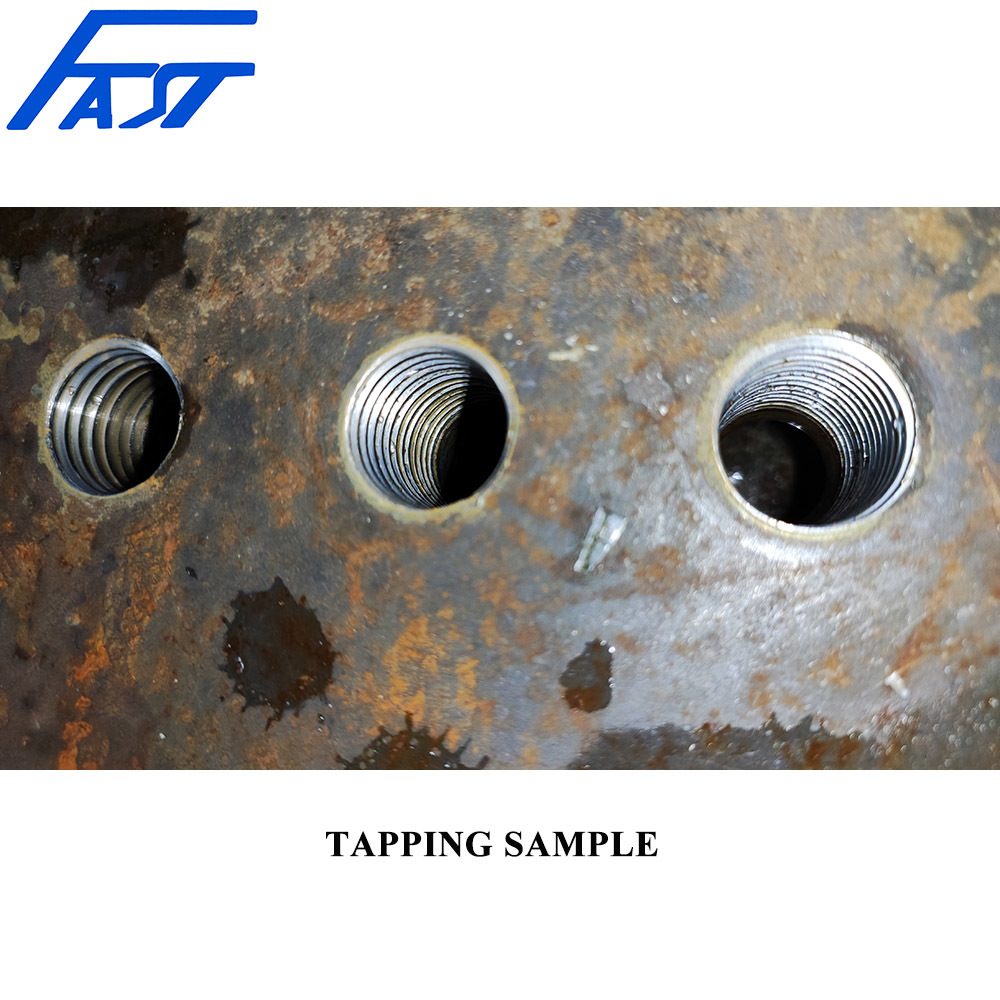

SAMPLES
